Overview & Specifications
Overview & Specifications
NoFrost
Liebherr s NoFrost appliances provide expert refrigeration technology to ensure long-term freshness. The food is frozen with chilled recirculating air, and any humidity is expelled. As a result, the freezer is always free of ice, and food no longer frosts over. NoFrost convenience makes defrosting a thing of the past.
Automatic SuperFrost function
The automatic SuperFrost function makes freezing simple and saves energy. It quickly reduces the temperature to -32 (degree)C and thus creates the cold air required to preserve vital vitamins. As soon as the food is completely frozen, the automatic SuperFrost function switches back to normal mode after max. 65 hours, and thus assists in saving electricity.
VarioSpace
All freezers with NoFrost and SmartFrost feature drawers and intermediate glass shelves underneath them which can be conveniently removed.This results in VarioSpace - the practical system for extra storage space so that space can be created quickly even for larger frozen food items.
- German Engineering
- Our superior products offer premium quality, cutting edge design and innovative features that fit with your busy lifestyle. Plus, exclusive components and materials along with the latest production processes ensure energy efficiency and performance for years to come.
- NoFrost
- Liebherr s NoFrost appliances provide expert refrigeration technology to ensure long-term freshness. The food is frozen with chilled recirculating air, and any humidity is expelled. As a result, the freezer is always free of ice, and food no longer frosts over. NoFrost convenience makes defrosting a thing of the past.
- Automatic SuperFrost function
- The automatic SuperFrost function makes freezing simple and saves energy. It quickly reduces the temperature to -32 (degree)C and thus creates the cold air required to preserve vital vitamins. As soon as the food is completely frozen, the automatic SuperFrost function switches back to normal mode after max. 65 hours, and thus assists in saving electricity.
- Door alarm
- The audible door alarm alerts the user if the door has been open for longer than 60 seconds for safe protection of the food.
- Temperature alarm
- The temperature alarm notifies immediately visually and audibly in case of inadvertent temperature deviations , for example when a door is opened or after a power failure.
- FrostSafe
- With the FrostSafe, the extra-high and removable drawers are closed all round. This means that the cold cannot dissipate so quickly when the appliance is opened. The transparent front of the compartments guarantees an optimum overview of the frozen items.
- VarioSpace
- All freezers with NoFrost and SmartFrost feature drawers and intermediate glass shelves underneath them which can be conveniently removed.This results in VarioSpace - the practical system for extra storage space so that space can be created quickly even for larger frozen food items.
- Reversible door hinges
- It is possible to change the door hinge on the appliance. The reversible door hinges permit optimum use of the appliance wherever it is located.
- Door-on-door system

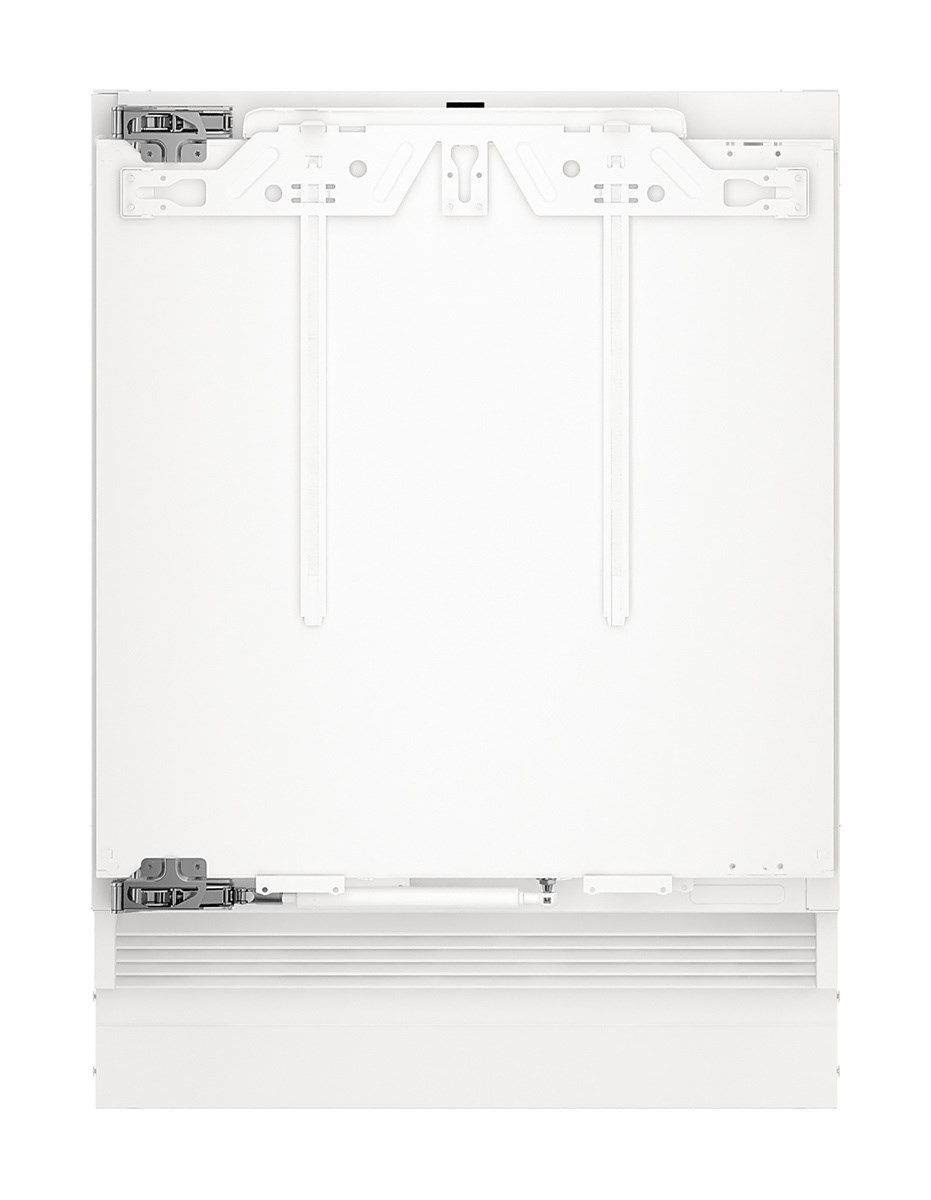

- The unit door and appliance door are firmly interconnected with the unit door being fixed directly onto the appliance door.
- VarioBase
- The VarioBase permits the adjustment of kitchen units in height and depth. All four height-adjustable feet permit adjustment from the front with a 60 mm range. In addition, the ventilation grille can be adjusted within a range of 55 mm to match the front of the kitchen units.
General product information | |
Model type | Integrated under-worktop freezer with NoFrost |
GTIN | 4016803122296 |
Series | Prime |
Output and consumption | |
Energy consumption in 24h | 0.827 kWh / 24h |
Energy consumption per year | 302 kWh/a |
Noise level | 38 dB |
Voltage | 115 V ~ |
Frequency | 60 Hz |
Connection rating | 2.3 A 188 W |
Control and functions | |
Control unit | Touch |
Temperature display | Freezer |
Front frame heating | present |
SuperFrost | Automatic |
BottleTimer | - |
Type of control | Magic Eye with LC and digital temperature display |
Position of control unit | behind the door |
Malfunction: Warning signal | optical and acoustical |
FrostControl | |
Door open: Warning signal, freezer compartment | visual and audible |
Freezer compartment | |
Adjustable temperature range | +7 °F to -18 °F |
Cooling technology | NoFrost |
Defrosting method | automatic |
Freezing capacity in 24 h in pounds | 0.0 pounds |

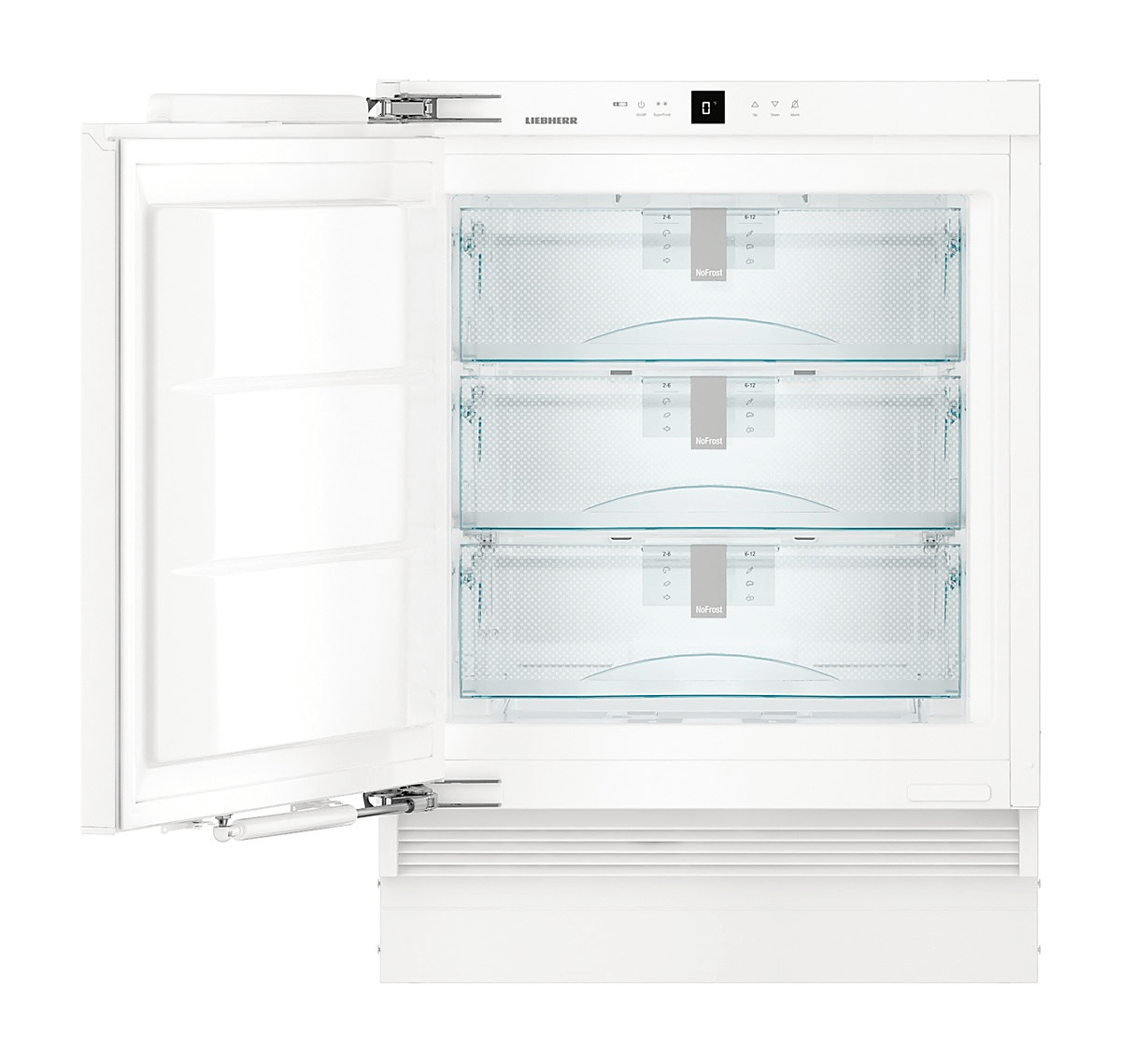

No. of drawers in freezer compartment | 3 |
FrostSafe | Drawers closed on all sides, transparent |
Interior light | LED light |
4-star freezer compartment | - |
VarioSpace | |
Ice cube storage | 0.0 pounds |
Ice cube tray | Ice cube tray with lid |
Number of ice cube trays | 1 |
No. of cold storage accumulators | 2 |
Freezer tray | 0 |
Star-rating | 4 |
Design and materials | |
Material adjustable shelves freezer compartment | Glass |
Door material | Door prepared for stainless steel panel |
Set-up and installation | |
Type of installation | Under-worktop |
Door assembly | Fixed door |
Door hinges | Left reversible |
Door opening angle | 115° |
Height-adjustable feet | 4 |
Levelling bars | - |
Ventilation | Base ventilation |
Plug type | USA |
Connector cable (length) | 2,220 mm |
Specifications | |
Net capacity, total | 0.0 cubic feet |
Aperture height | 32 5/16 - 34 11/16 inch |
Range of appliance width | 23 5/8 inch |
Min. depth | 21 11/16 inch |
Exterior dimensions: height/width/depth | 32 5/16 23 9/16 21 11/16 inch |
Dimensions packed hwd in inches | 36 1/2 24 1/4 24 5/16 inch |
Weight (without packaging) | 88.8 pounds |
Weight (with packaging) | 102.3 pounds |
