Overview & Specifications
Overview & Specifications
Enjoy an ample supply of clear, uniformly shaped ice cubes ideal for a variety of everyday applications. This 15-inch ice maker accepts an overlay-style front panel (requires custom panel and handle, not included) that adds an elegant finishing touch to your kitchen or bar area. Fully Flush Installation blends with surrounding cabinetry for a refined built-in look.
- Built-In Drain Pump System
- Allows this ice maker to be installed nearly anywhere in the home within 100 feet of an under-sink drain line, so you can keep a continuous supply of clear ice in your kitchen or entertaining space
- Clear Ice Technology
- provides cubes of uniform 3/4" x 3/4" x 1/2" size and shape that are ideal for daily use or a variety of entertaining needs. Clear Ice Technology allows for attractive drink presentation and a slow melt rate so beverages won't water down quickly.
- Filter-Ready
- provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.
- Fully Flush Installation with Articulating Hinge
- allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.
- Holds 25 Pounds of Ice
- ensures a generous supply of fresh ice is conveniently at your fingertips.
- Max Ice
- PrintShield(TM) Finish
- resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
- Reversible Door
- offers flexible installation options by allowing hinge installation on either side of the door.
- Self Cleaning Cycle
- Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.
Certifications | |
Ada Compliant | No |
Prop65 | Standard |
Ul | Yes |
Controls | |
Ambient Temperature Range | 55F to 110F |
Control Location | Interior Up Front |
Control Type | Electronic Touch |
Details | |
Door Opening Direction | Right |
Drain Connection | Rear Access 5/8in. OD |
Drain Pump | Pump Included |
Ice Capacity Storage | 25 |
Stainless Steel Cutting Grid | 3/4in. x 3/4in. Cubes |
Water Inlet Connection | 1/4in. OD PEX Tubing |
Water Supply Pressure | 30 - 120 psi |
Dimensions | |
Carton Depth | 28.37 |
Carton Height | 36.07 |
Carton Width | 17.25 |

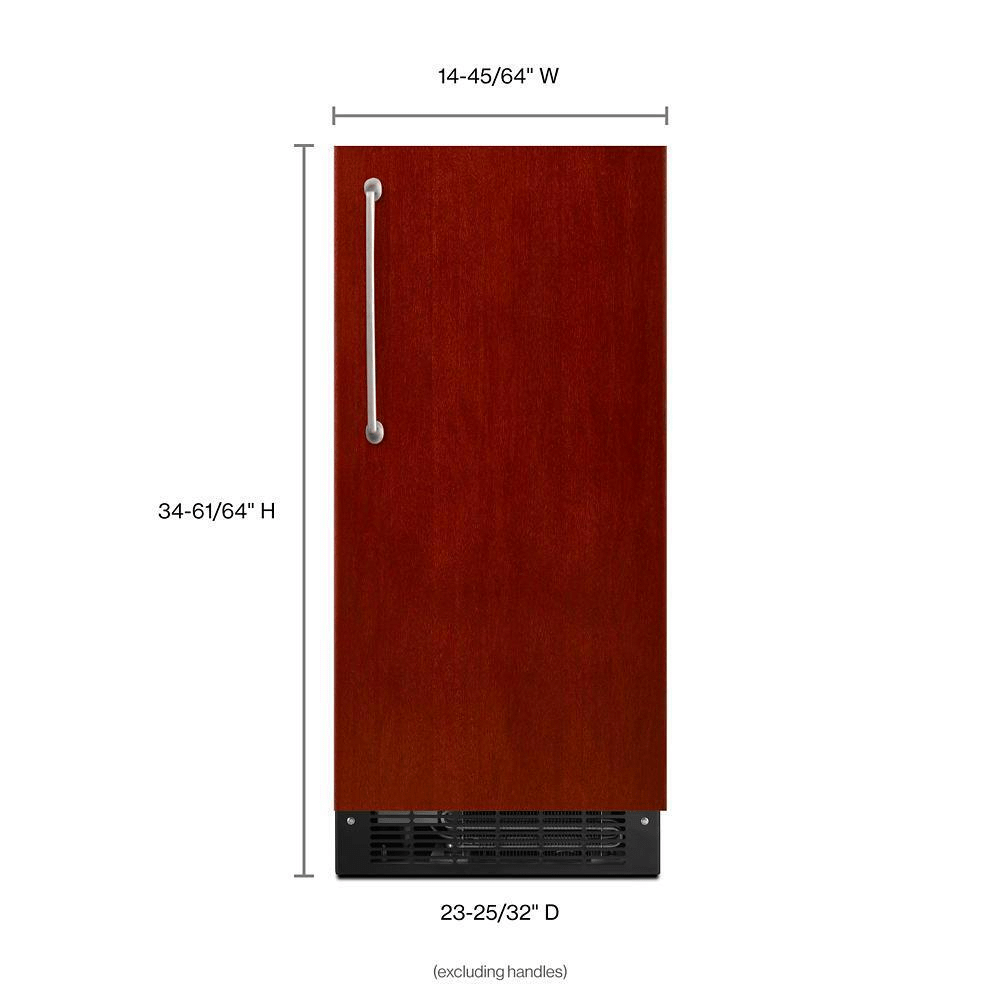

Cutout Depth | 25 |
Cutout Height | 34.5 |
Cutout Width | 15 |
Gross Weight | 107 |
Height To Top of Cabinet | 33.625 |
Height To Top of Door Hinge | 34.063 |
Net Weight | 96.5 |
Exterior Details | |
Cabinet Finish | Textured |
Cabinet Material | Prepainted Steel |
Handle Location | Horizontal |
Reversible Door | Yes |
Filter Details | |
Water Filter Indicator/reset | Yes |
Water Filter Location | Interior |
Water Filter Part Number | F2WC9I1 |
Freezer Details | |
Defrost Type | Automatic Defrost |
Icemaker Details | |
Ice Maker On/off | Yes |
Oven Details | |
Interior Light | LED |
Refrigerator Details | |
Interior Liner Finish | Plastic |
Liner Color | White |
