Overview & Specifications
Overview & Specifications
Fully Flush Installation lets this automatic ice maker blend in with surrounding cabinetry for a refined built-in look. Its Clear Ice Technology helps produce cubes of uniform clarity, size and shape that are ideal for everyday use. And because it holds 25 pounds of ice, there will always be enough ice for entertaining.
- Clear Ice Technology
- provides cubes of uniform 3/4" x 3/4" x 1/2" size and shape that are ideal for daily use or a variety of entertaining needs. Clear Ice Technology allows for attractive drink presentation and a slow melt rate so beverages won't water down quickly.
- Filter-Ready
- provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.
- Fully Flush Installation with Articulating Hinge
- allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.
- Gravity Drain System
(Pump Sold Separately) - Installs directly over a floor drain or can be adapted to connect to an under-sink drain line within 100 ft with additional purchase of Drain Pump 1901A (sold separately), so you can keep a continuous supply of clear ice nearly anywhere in the home
- Holds 25 Pounds of Ice
- ensures a generous supply of fresh ice is conveniently at your fingertips.
- Max Ice
- PrintShield(TM) Finish
- resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
- Reversible Door
- offers flexible installation options by allowing hinge installation on either side of the door.
- Self Cleaning Cycle
- Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.
Certifications | |
Ada Compliant | No |
Prop65 | Standard |
Ul | Yes |
Controls | |
Ambient Temperature Range | 55F to 110F |
Control Location | Interior Up Front |
Control Type | Electronic Touch |
Details | |
Door Opening Direction | Right |
Drain Connection | Rear Access 5/8in. OD |
Drain Pump | No, Gravity Drain |
Ice Capacity Storage | 25 |
Stainless Steel Cutting Grid | 3/4in. x 3/4in. Cubes |
Water Inlet Connection | 1/4in. OD PEX Tubing |
Water Supply Pressure | 30 - 120 psi |

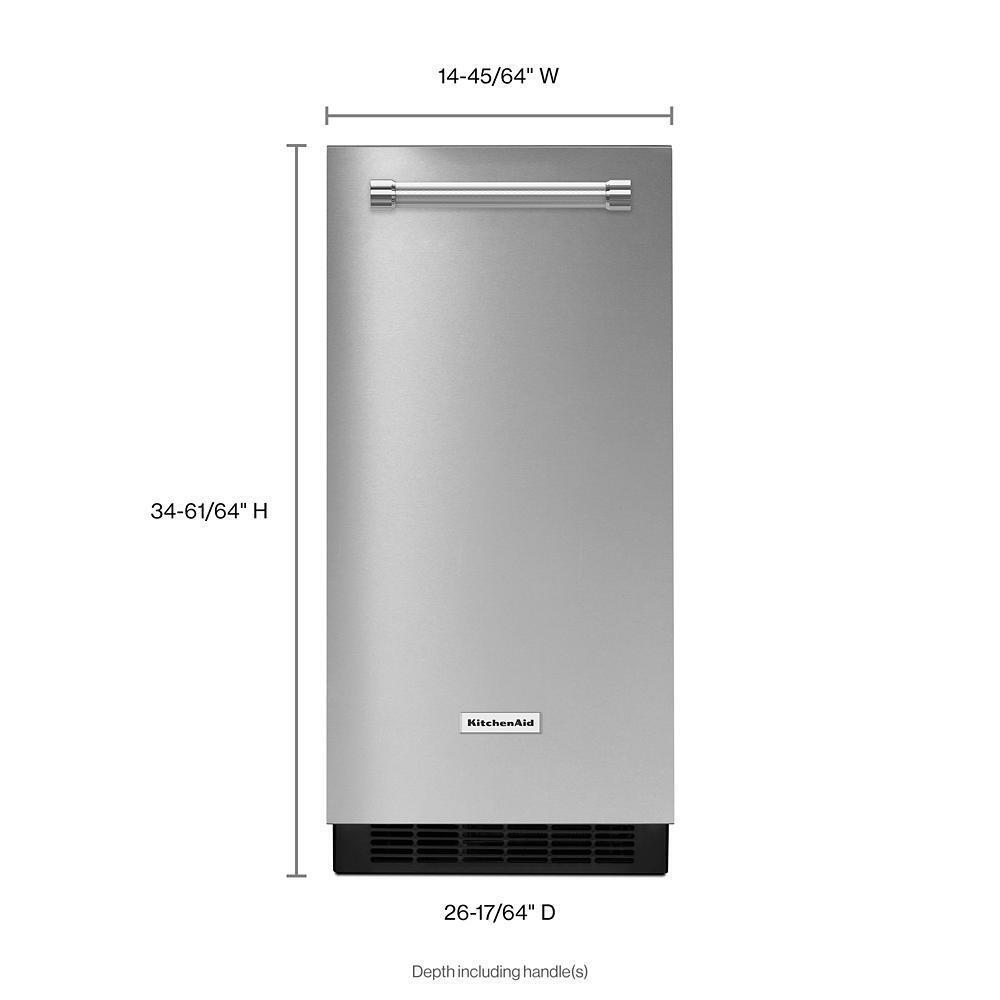

Dimensions | |
Carton Depth | 28.37 |
Carton Height | 36.07 |
Carton Width | 17.25 |
Cutout Depth | 25 |
Cutout Height | 34.5 |
Cutout Width | 15 |
Gross Weight | 107 |
Height To Top of Cabinet | 33.625 |
Height To Top of Door Hinge | 34.063 |
Net Weight | 96.5 |
Exterior Details | |
Cabinet Finish | Textured |
Cabinet Material | Prepainted Steel |
Handle Color | Stainless Steel |
Handle Location | Horizontal |
Handle Material | Metal |
Handle Type | Towel Bar |
Reversible Door | Yes |
Filter Details | |
Water Filter Indicator/reset | Yes |
Water Filter Location | Interior |
Water Filter Part Number | F2WC9I1 |
Freezer Details | |
Defrost Type | Automatic Defrost |
Icemaker Details | |
Ice Maker On/off | Yes |
Oven Details | |
Interior Light | LED |
Refrigerator Details | |
Interior Liner Finish | Plastic |
Liner Color | White |
