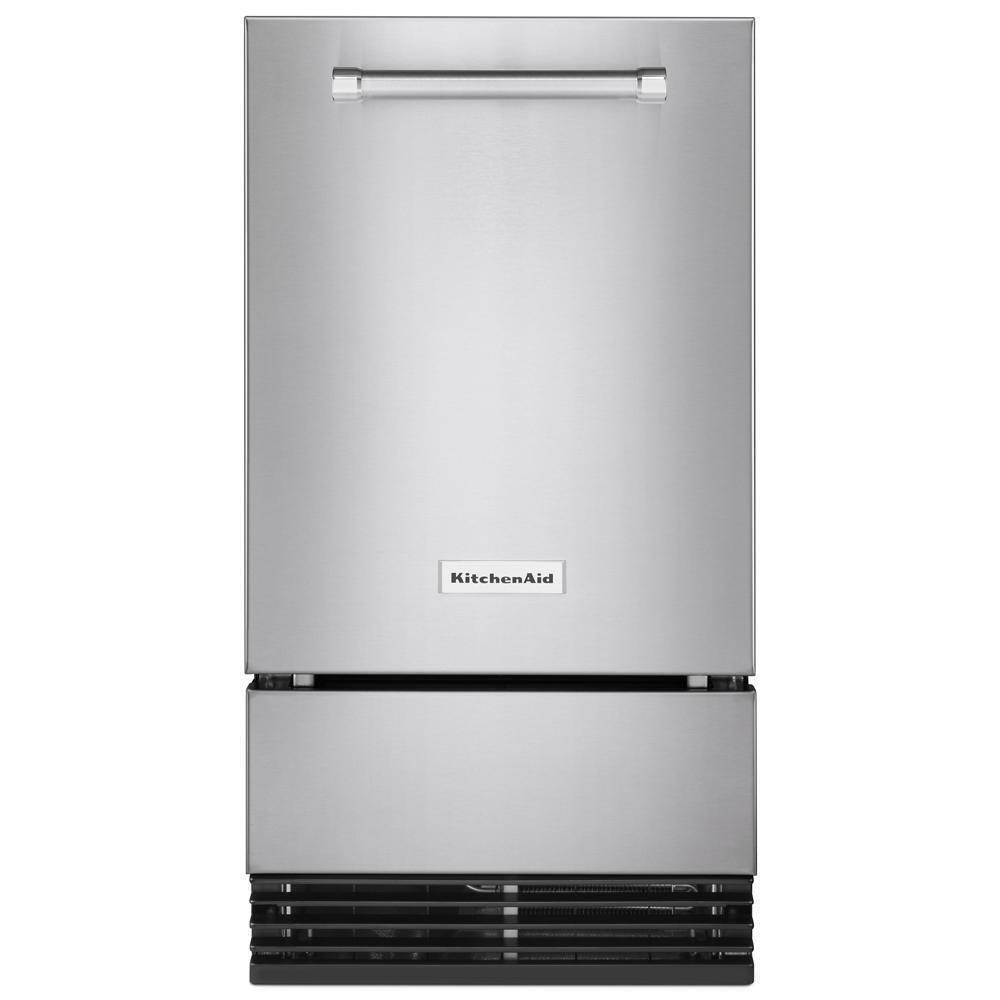

A capacity of up to 35 pounds makes this automatic ice maker a fundamental accessory every time you entertain. Clear Ice Technology helps produce cubes of appealing clarity, size and shape that are ideal for everyday use. True Flush Installation blends with surrounding cabinetry for a refined built-in look.
- Clear Ice Technology
- Provides a uniform 3/4" x 3/4" x 1/2" size and shape that is ideal for daily use or a variety of entertaining needs.
- Drop-Down Door
- Allows a more custom installation with a design that removes the need to account for a hinge.

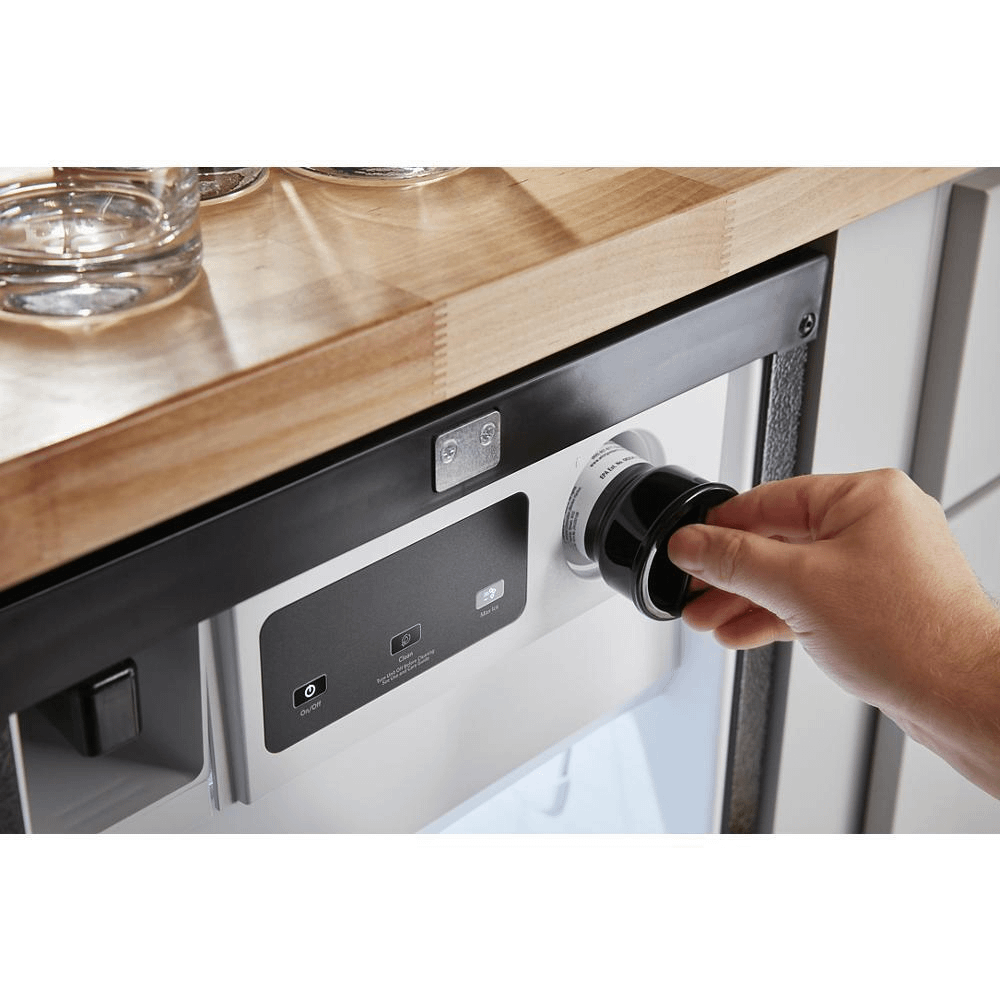

- Filter-Ready
- provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.

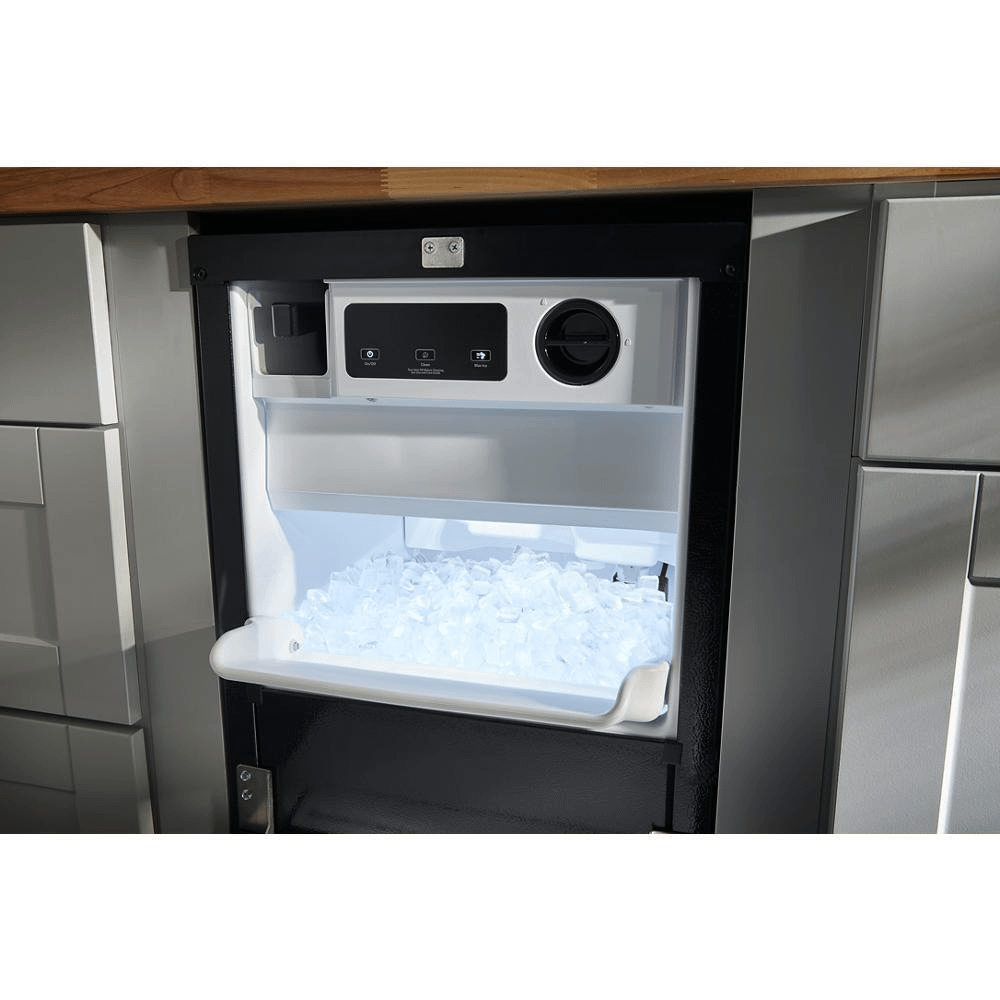

- Fully Flush Installation
- allows the door to sit flush without protruding or leaving a gap between the ice maker and adjoining cabinets, providing a built-in look that adds a touch of style to your kitchen or bar space.
- Gravity Drain System
(Pump Sold Separately) - Installs directly over a floor drain or can be adapted to connect to an under-sink drain line within 100 ft with additional purchase of Drain Pump 1901A (sold separately), so you can keep a continuous supply of clear ice nearly anywhere in the home
- Holds 35 Pounds of Ice
- Ensures a generous supply of clear, fresh ice is conveniently at your fingertips.
- Max Ice
- Ice is produced 56% faster, compared to normal mode, when ice is needed quickly.
- PrintShield(TM) Finish
- resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
- Self Cleaning Cycle
- Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.
Certifications | |
Ada Compliant | No |
Prop65 | Standard |
Ul | Yes |
Controls | |
Ambient Temperature Range | 55F to 110F |
Control Location | Interior Up Front |
Control Type | Electronic Touch |
Details | |
Door Opening Direction | Drop Down |
Drain Connection | Rear Access 5/8in. OD |
Drain Pump | No, Gravity Drain |
Ice Capacity Storage | 35 |
Stainless Steel Cutting Grid | 3/4in. x 3/4in. Cubes |
Water Inlet Connection | 1/4in. OD PEX Tubing |
Water Supply Pressure | 30 - 120 psi |

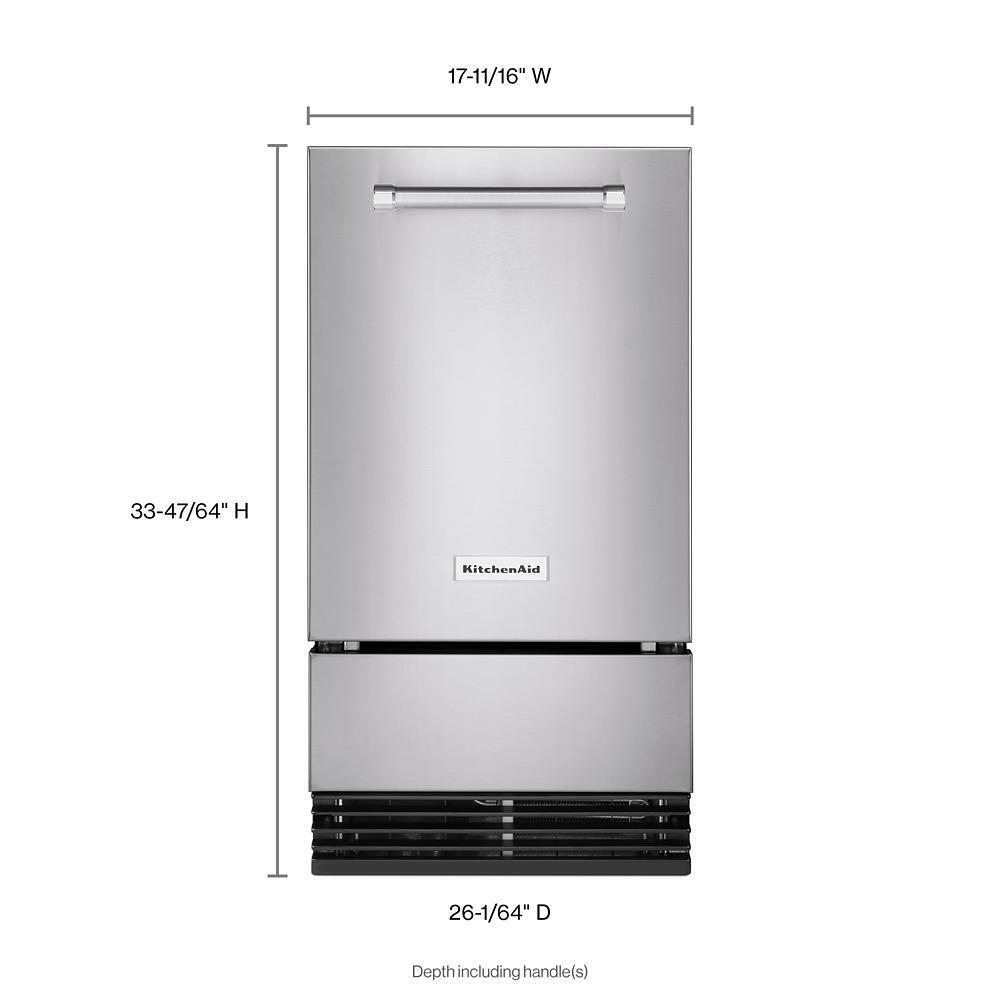

Dimensions | |
Carton Depth | 28.58 |
Carton Height | 36.61 |
Carton Width | 20.43 |
Cutout Depth | 25 |
Cutout Height | 34.5 |
Cutout Width | 18 |
Depth Closed Excluding Handles | 23.125 |
Depth Closed Including Handles | 25.625 |
Depth Excluding Doors | 21.5 |
Depth With Door Open 90 Degree | 44.125 |
Gross Weight | 135 |
Height To Top of Cabinet | 34.375 |
Height To Top of Door Hinge | 34.375 |
Net Weight | 124.5 |
Exterior Details | |
Cabinet Finish | Textured |
Cabinet Material | Prepainted Steel |
Handle Color | Stainless Steel |
Handle Location | Horizontal |
Handle Material | Metal |
Handle Type | Towel Bar |
Reversible Door | No |
Filter Details | |
Water Filter Indicator/reset | Yes |
Water Filter Location | Interior |
Water Filter Part Number | F2WC9I1 |
Freezer Details | |
Defrost Type | Automatic Defrost |
Icemaker Details | |
Ice Maker On/off | Yes |
Oven Details | |
Interior Light | LED |
Refrigerator Details | |
Interior Liner Finish | Plastic |
Liner Color | White |
