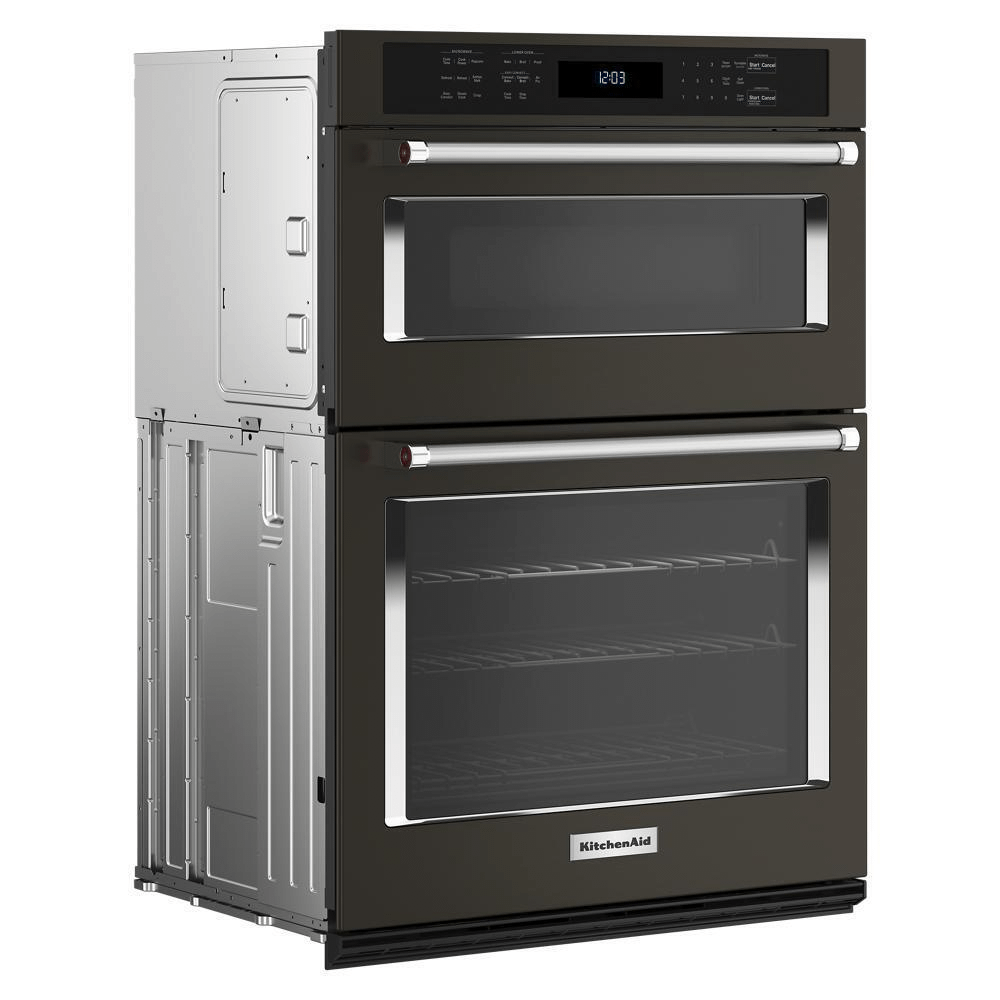

Get the crisp you crave, right from your oven. KitchenAid® Combination Microwave Wall Ovens with Air Fry Mode circulate hot air around the included basket to cook with less oil.* Microwave convection cooking turns the microwave into a second oven for small batch bakes like cookies, madeleines and cakes. *When compared to deep frying.

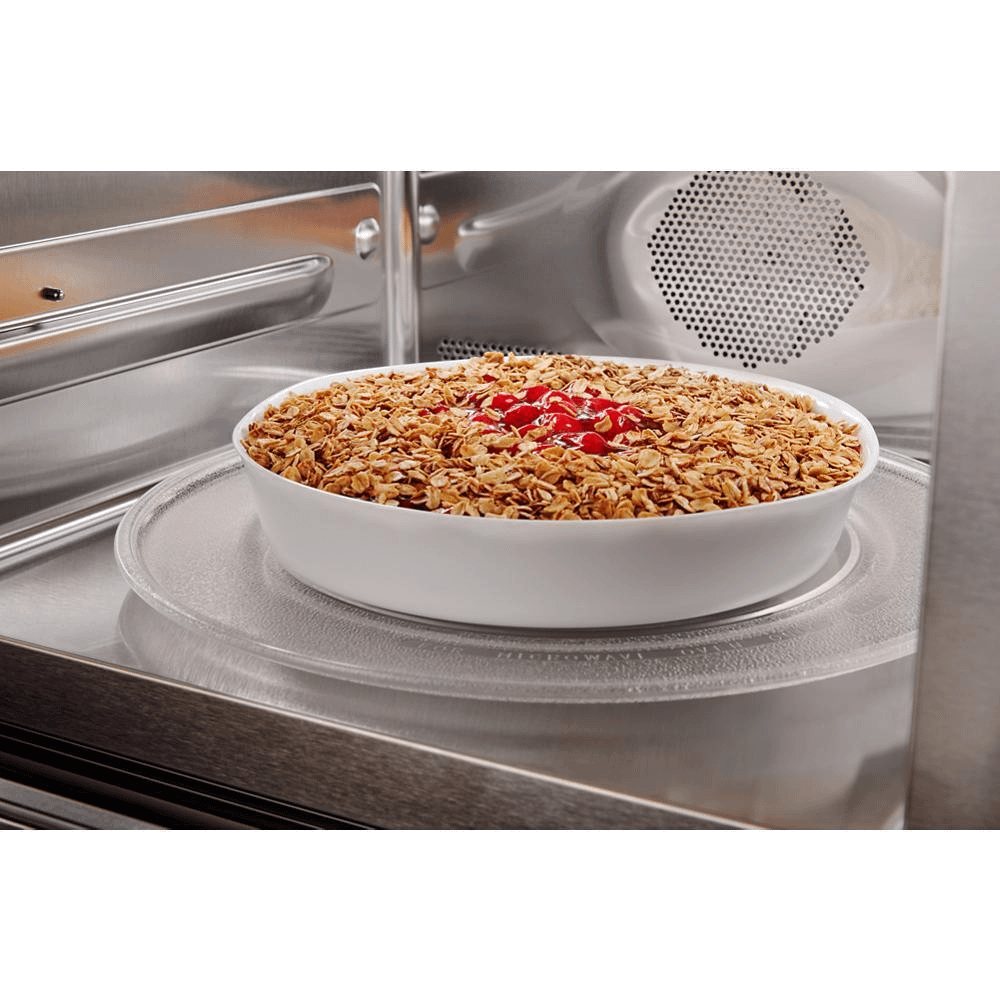

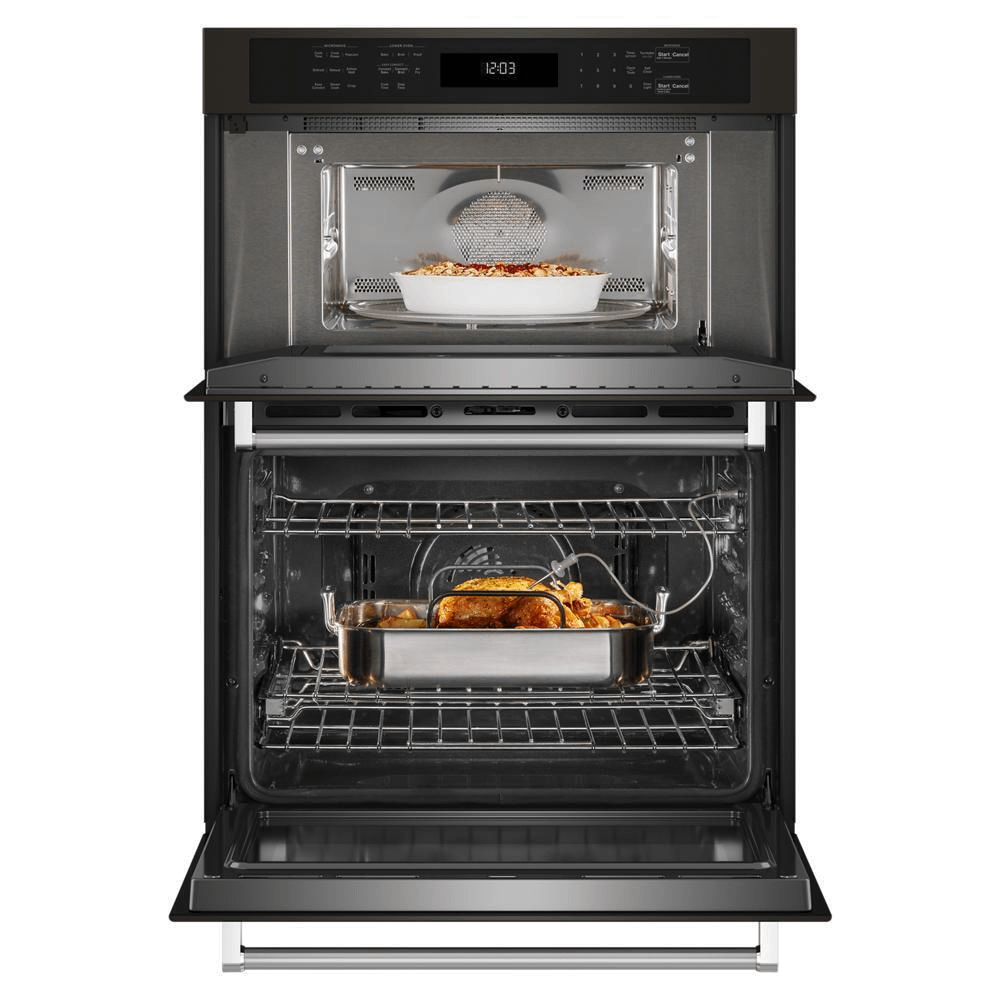

- 1.4 Cu. Ft. Microwave Oven Capacity
- Comfortably fits a variety of dishes with enough height for a mixing bowl and width for a 9" x 13" casserole dish.
- 4,000-Watt Broil Element
- Uses high heat to give foods a crispy, golden brown finish. Use Broil to sear meat, grill fish, char vegetables, toast bread, melt cheesy toppings and more.
- 5.0 Cu. Ft. Oven Capacity
- Provides room to cook multiple dishes, so you can cook a whole turkey or roast and sides all at once.
- Air Fry Mode
- Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.*
*When compared to deep frying. - CrispWave(TM) Technology

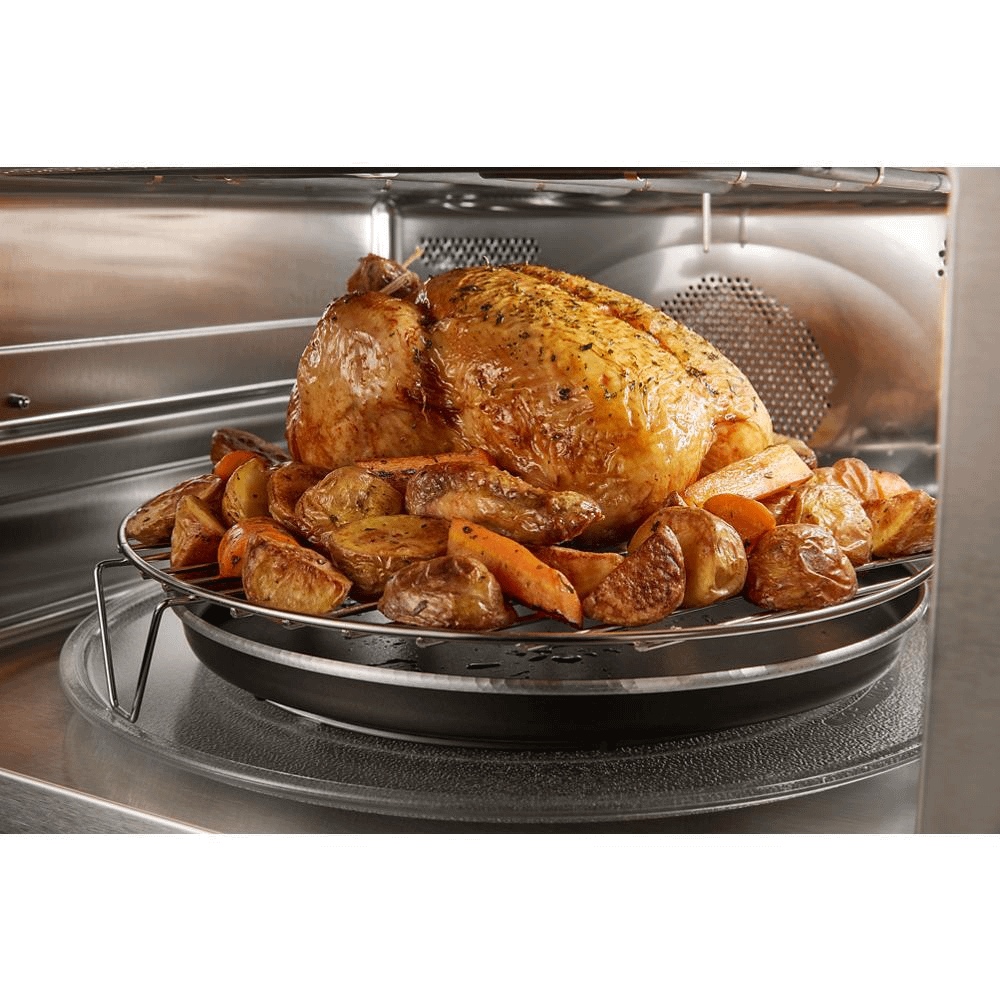

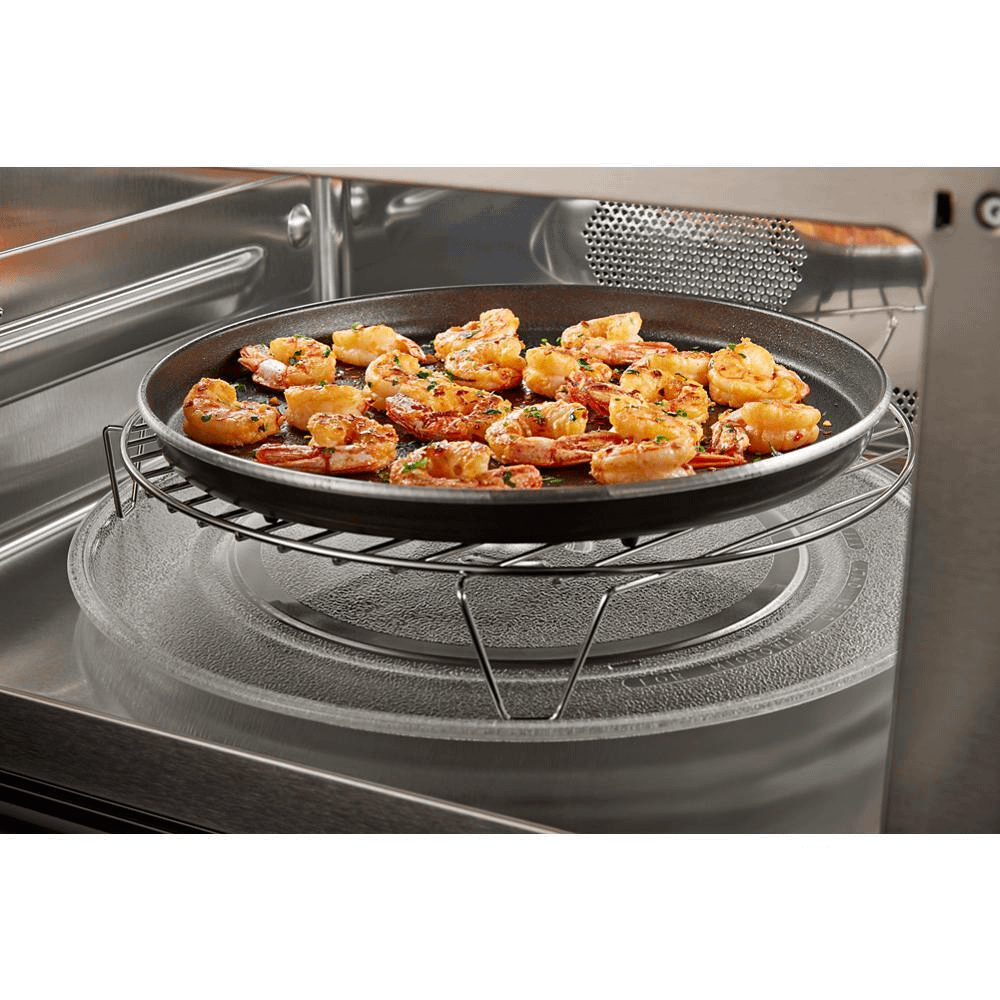

- Uses microwave power to heat the included crisper pan and a 1600-watt element in the top of the microwave to brown and broil, allowing you to grill meats, crisp pizza, fry bacon and more, right in the microwave.
- Dishwasher-Safe Air Fry Basket
- Allows air to circulate around food as it cooks for crisping and browning and is dishwasher-safe for easy cleanup.
- EasyConvect(TM) Conversion System
- Automatically adjusts conventional baking temperatures and cook times to their convection equivalents, making it easy to use convection with recipes of all kinds.
- Even-Heat(TM) Preheat
- Raises the oven temperature an extra 40(degree)F during preheating to maintain the set temperature when the oven door is opened and food is added. This also ensures the entire oven cavity, including walls and racks, is fully heated to help prevent cold spots.

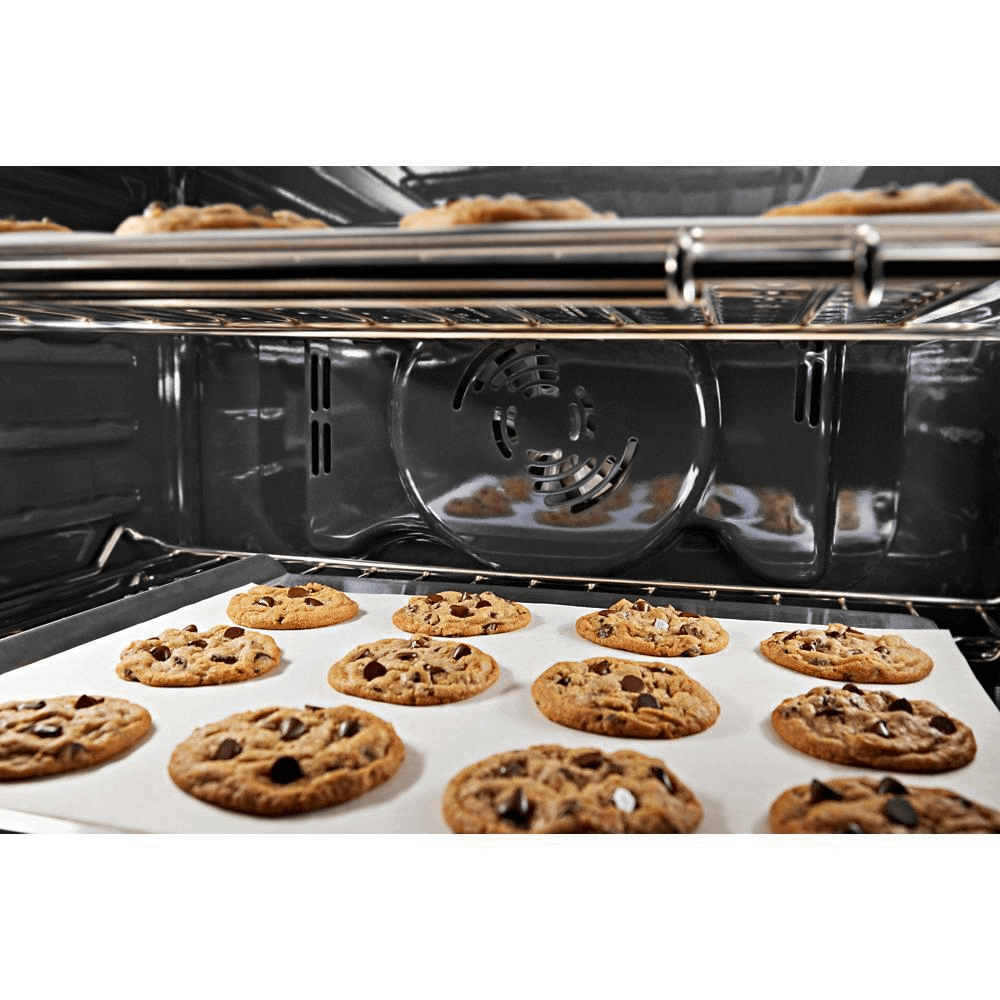

- Even-Heat(TM) True Convection
- Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.
- FIT System Limited Guarantee
- Allows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.*

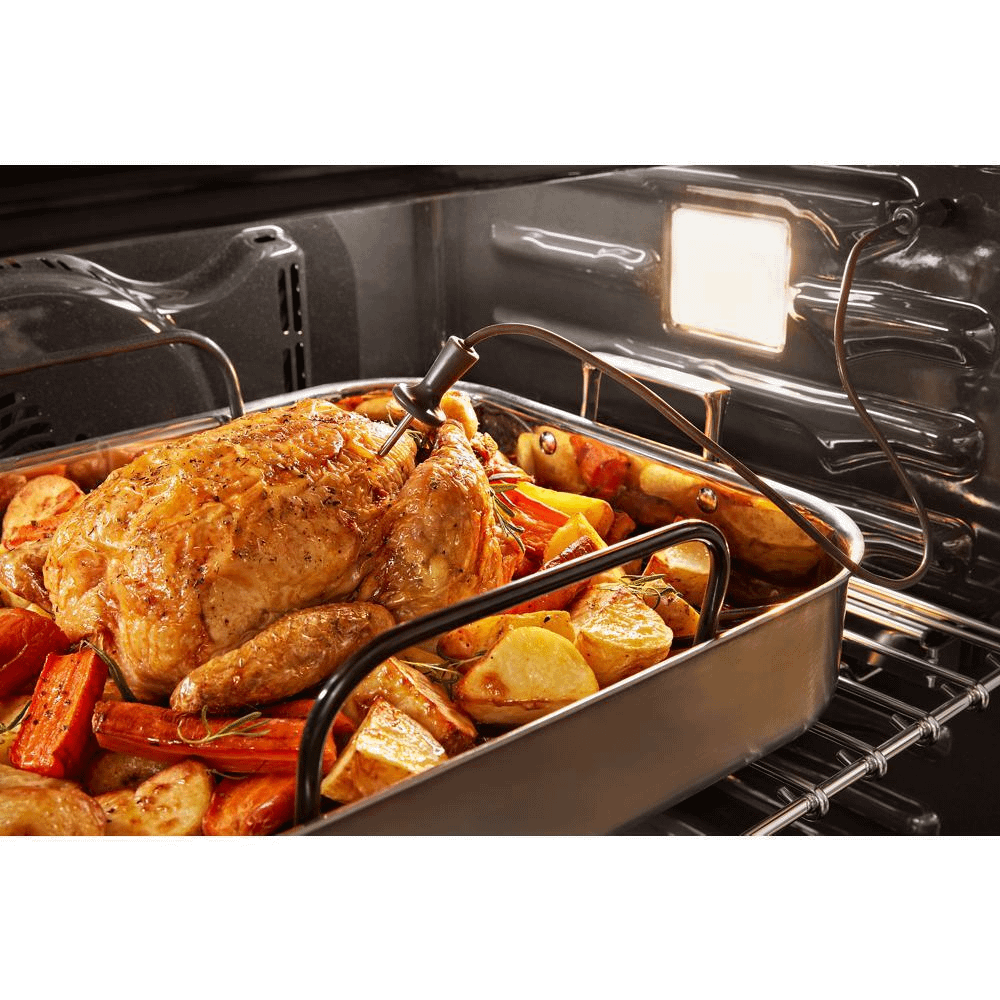

*On 27" and 30" KitchenAid(R) wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit kitchenaid.com/promotions. - Integrated Meat Thermometer
- Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.

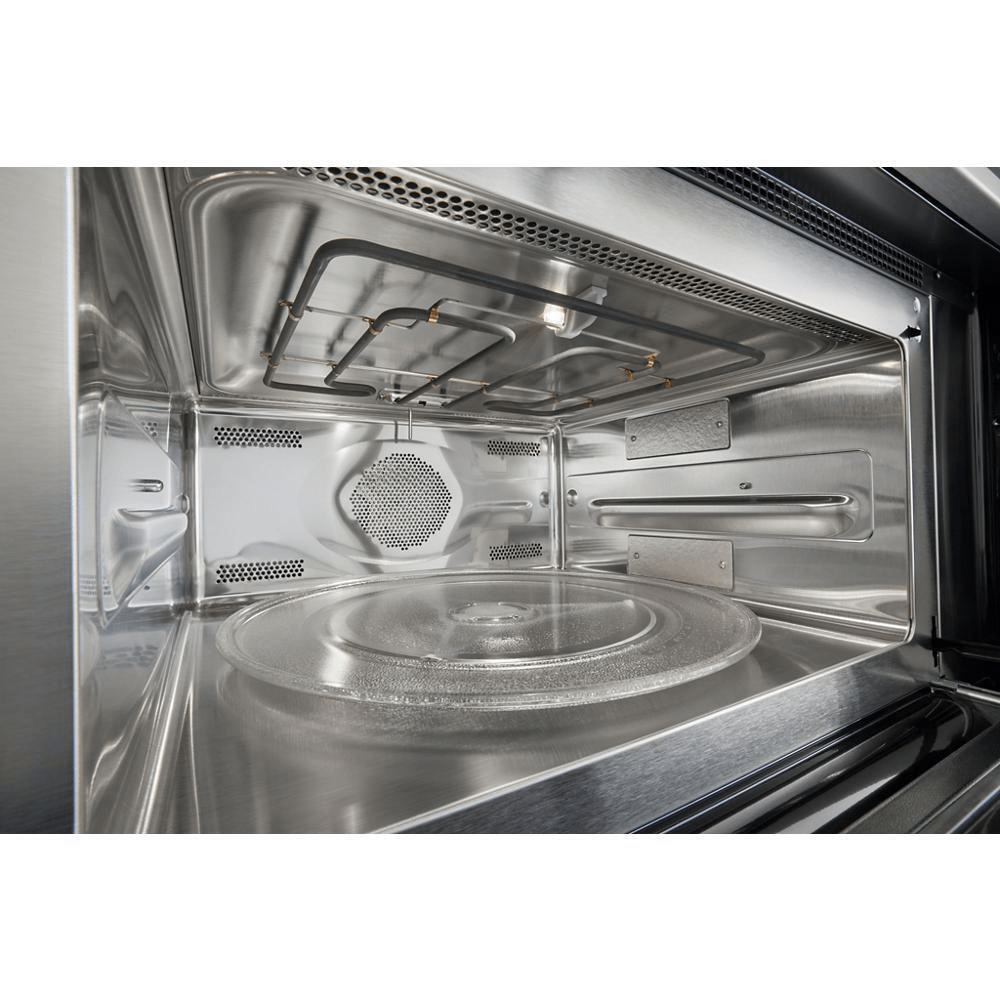

- Microwave Convection Cooking
- Uses dual heating elements and a fan to reach temperatures up to 450(degree)F, turning the microwave into a second oven for small batch bakes like cookies, madeleines and cakes.
- PrintShield(TM) Finish
- Resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.

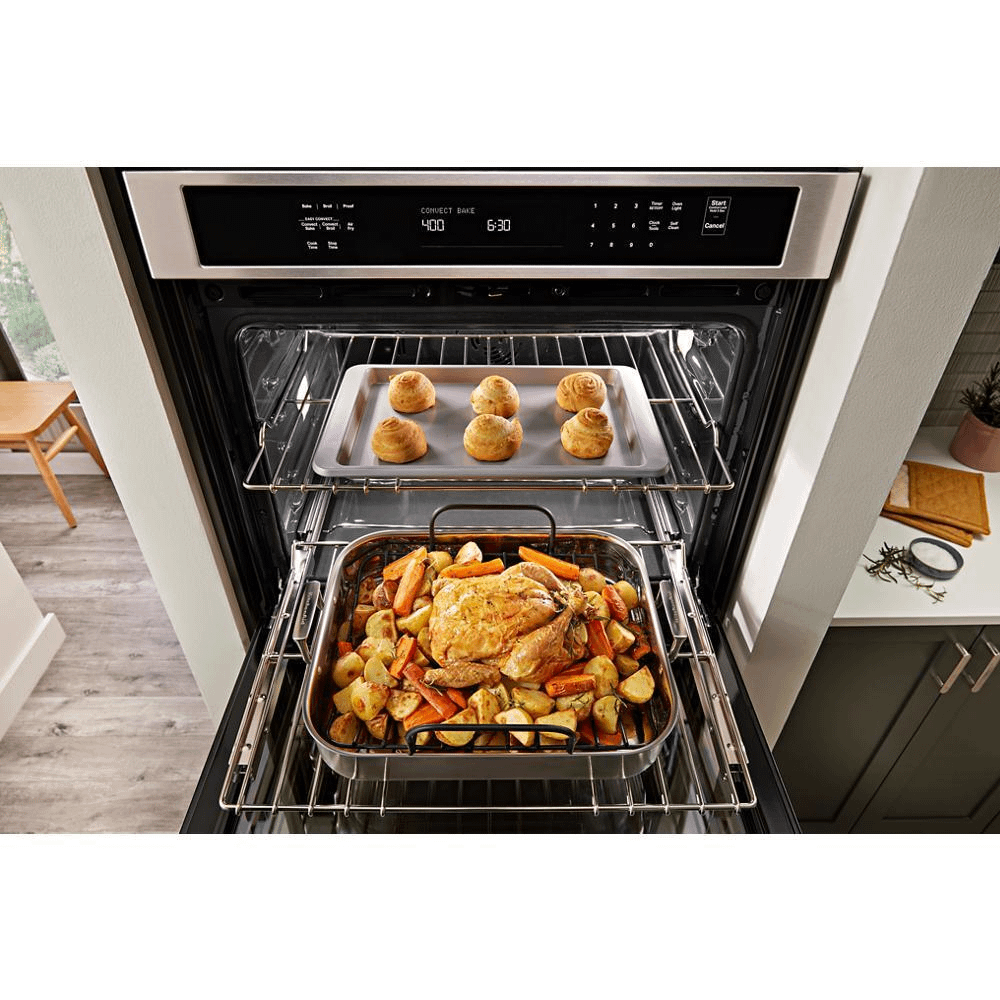

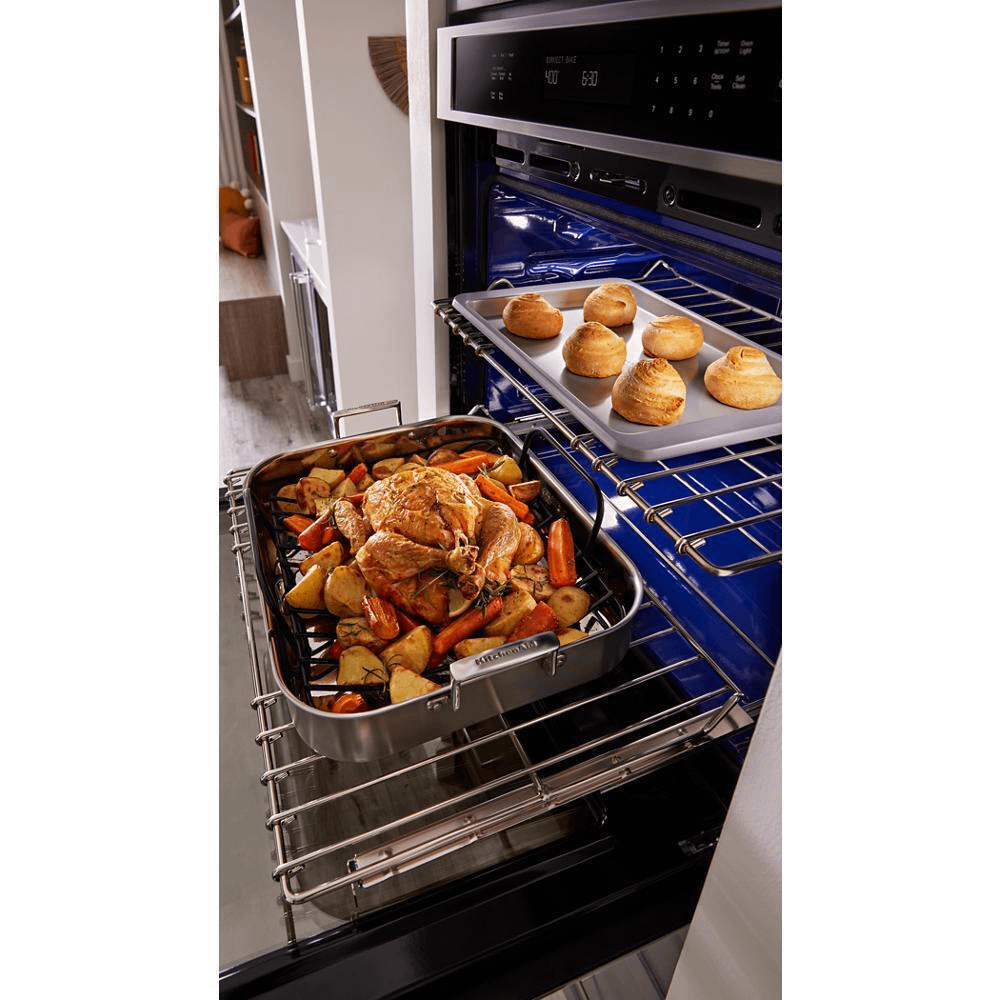

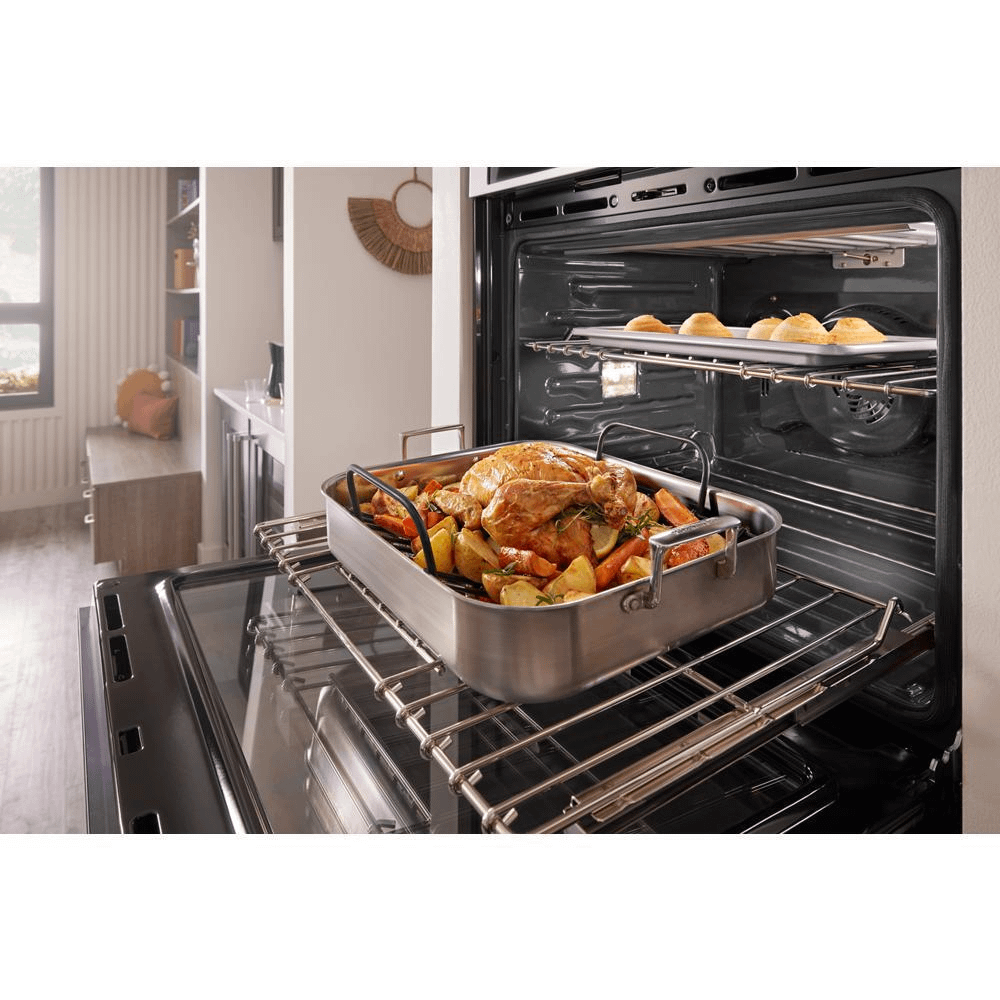

- SatinGlide(TM) Roll-Out Extension Rack
- Makes it easy to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.
- Self-Cleaning Cycle
- Uses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.

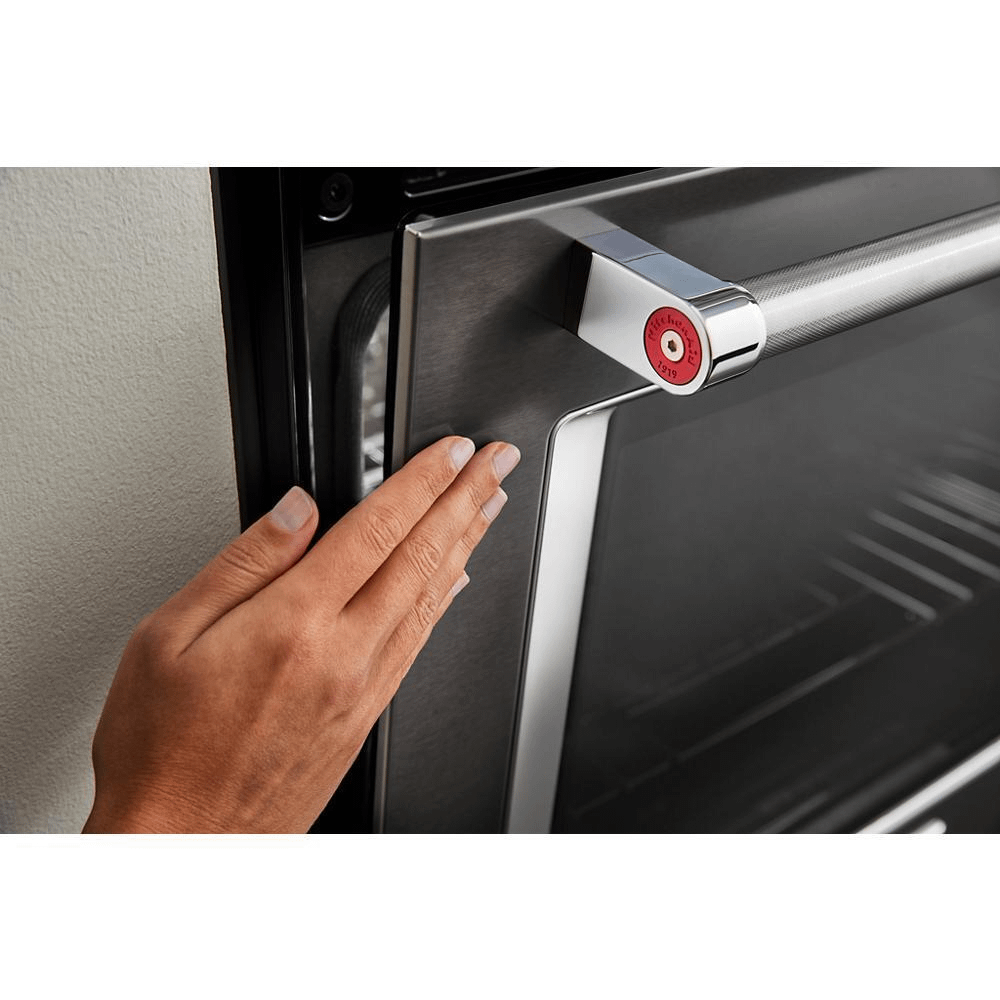

- Self-Close Doors
- Feature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.
- Star-K Certified
- To meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
- What's in the box
- Combination Microwave Wall Oven includes a Dishwasher-Safe Air Fry Basket, a Microwave Crisper Pan, and an Integrated Meat Thermometer
Certifications | |
Ada Compliant | No |
Cul | Yes |
Energy Rating | 356 |
Energy Rating (kwh/year) | 356 |
Prop65 | Standard |
Star K Certified | Star K Certified |
Ul | Yes |
Controls | |

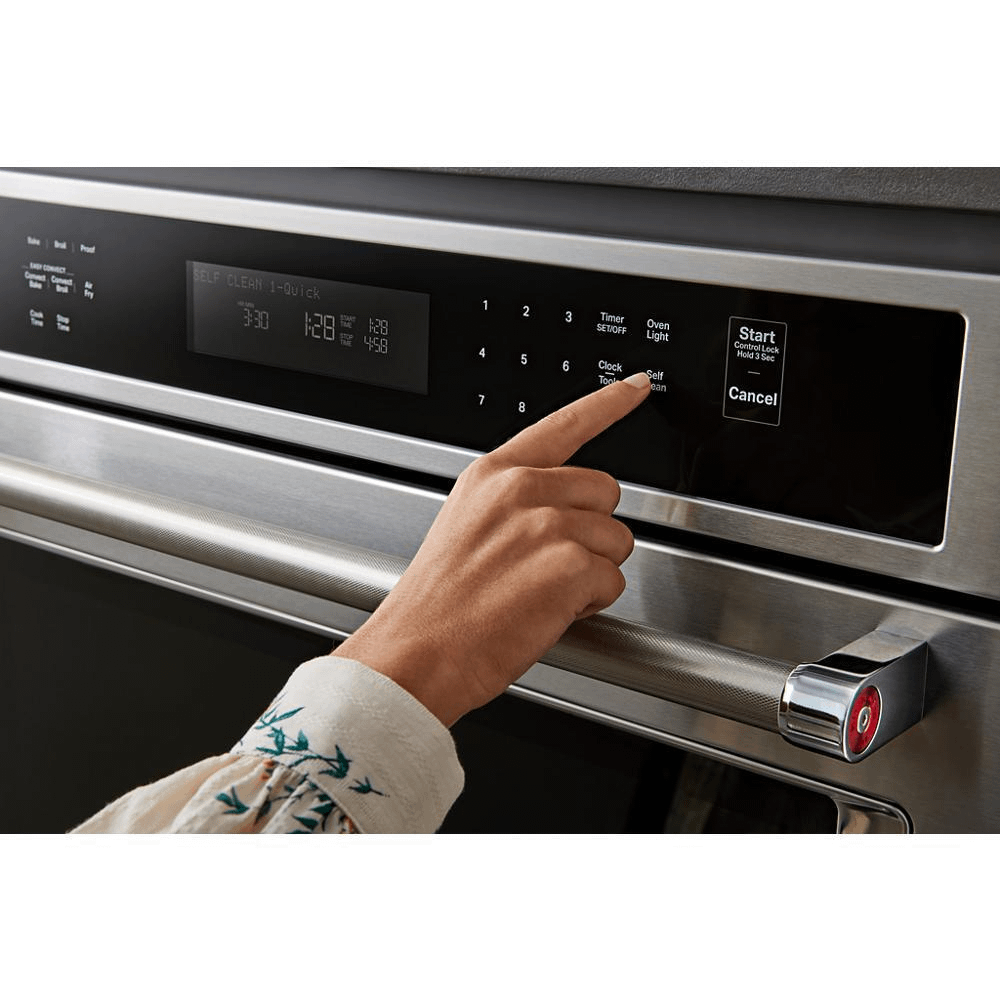

Control Type | Electronic Touch |
Display Color | White |
Electronic Display Type | Digital |
Microwave Selections | Add A Minute; Control Lock; Convect; Cook Power; Cook Time; Cook/Start; Crisp; Defrost; Easy Convect; End of Cycle Signal; Off/Cancel; Popcorn; Reheat; Soften/Melt; Sound On/Off; Steam; Time Cook; Timer |
Details | |
Flush Installation Approved | Yes |
Fuel Type | Electric |
Grill | Yes |
Grill Power | 1,600 |
Oven Automatic Shut-off | Yes |
Oven Selections | Air Fry; Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Keep Warm/Warm Hold; Language Conversion; Proofing; Rapid Preheat; Sabbath Mode; Start Time; Temperature Probe; Temperature-Sensor Baking; Timer |
Turntable | Yes |

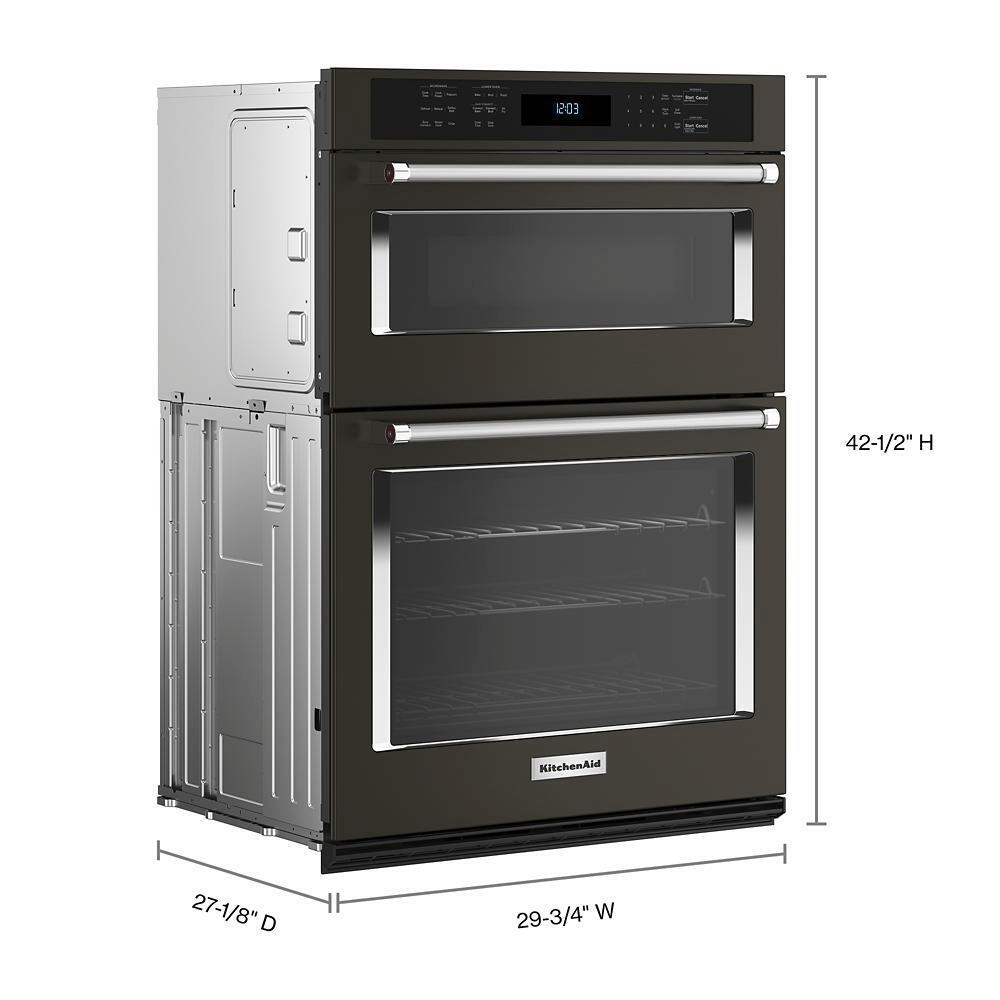

Dimensions | |
Product Height | 42.5 |
Carton Height | 45 |
Gross Weight | 265 |
Oven Interior Height | 18 |
Carton Width | 34.8 |
Product Depth | 27.125 |
Oven Interior Depth | 19 |
Depth With Door Open 90 Degree | 46.75 |
Cutout Depth | 24 |
Cutout Height | 41.313 |
Depth Closed Excluding Handles | 24.5 |
Depth Closed Including Handles | 27.125 |
Carton Depth | 30.8 |
Cutout Width | 28.5 |
Oven Capacity | 5 |
Oven Interior Width | 25 |
Net Weight | 243 |
Product Width | 29.75 |
Electrical | |
Power Cord Included | No |
Exterior Details | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
General | |
Microwave Interior Depth | 16.5 |
Microwave Interior Height | 8.25 |
Microwave Interior Light | Halogen |
Microwave Interior Width | 17.625 |
Microwave Details | |
Door Release | Handle |
Language Conversion | English/French/Spanish |
Microwave Capacity | 1.4 |
Number of Microwave Racks | 2 |
Sensor Cooking | Yes - Microwave |
Turntable Diameter Size | 14.125 |
Oven Details | |
Bake Element Power | 2,800 W |
Broiler Element Power | 4,000 W |
Broiler Location | Top of Oven |
Convection | Yes |
Convection Element Power | 3,200 |
Convection Element Type | True Convection |
Convection Functions | Bake; Broil; Convection Conversion |
Convection Power | 1,200 |
Cooking Power | 900 |
Door Broil Position | Closed |
Door Lock | Yes |
Hidden Bake Element | Yes |
Interior Coating | Porcelain |
Interior Color | Blue |
Number of Oven Lights | 2 |
Number of Oven Racks | 3 |
Number of Rack Guides | 6 |
Oven Cleaning Type | Self-Cleaning |
Oven Light Type | Halogen |
Self-cleaning Oven Racks | No |
Smart Compatibility | |
Connectivity | No |
Works With | No |
