Overview & Specifications
Overview & Specifications

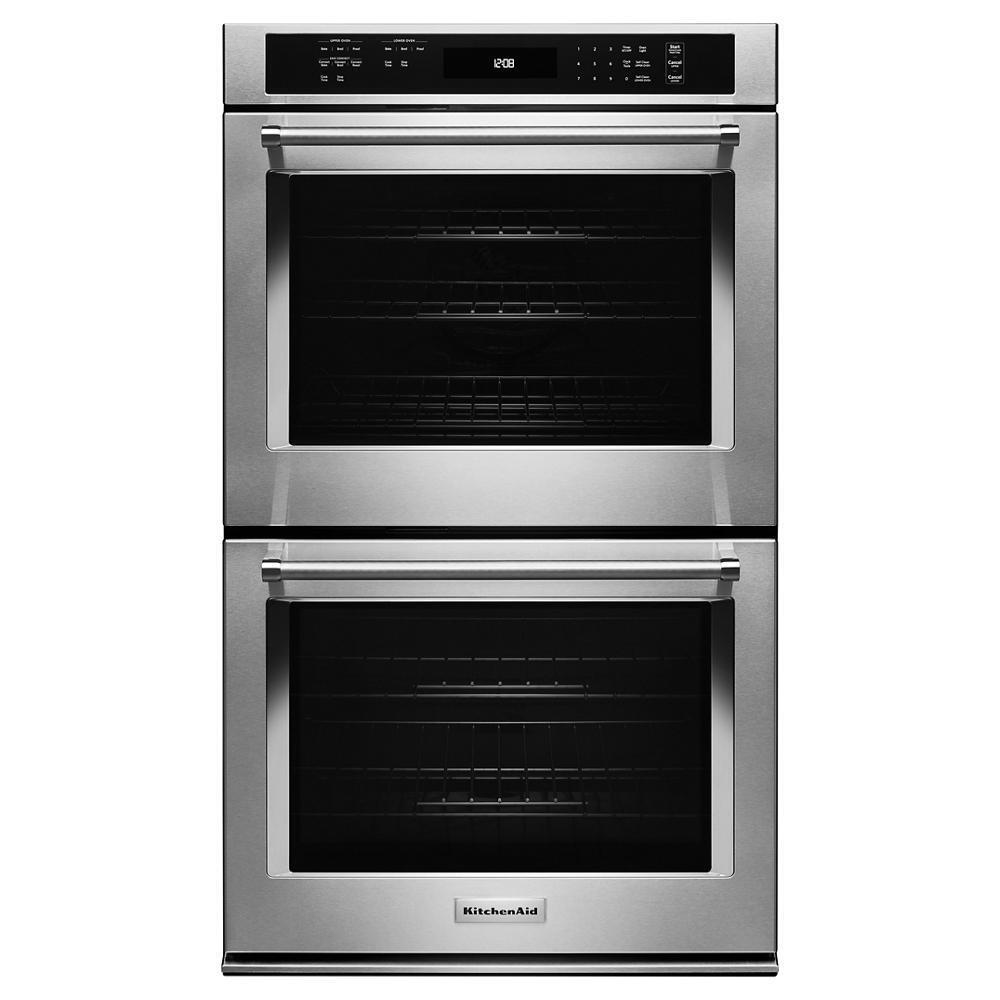

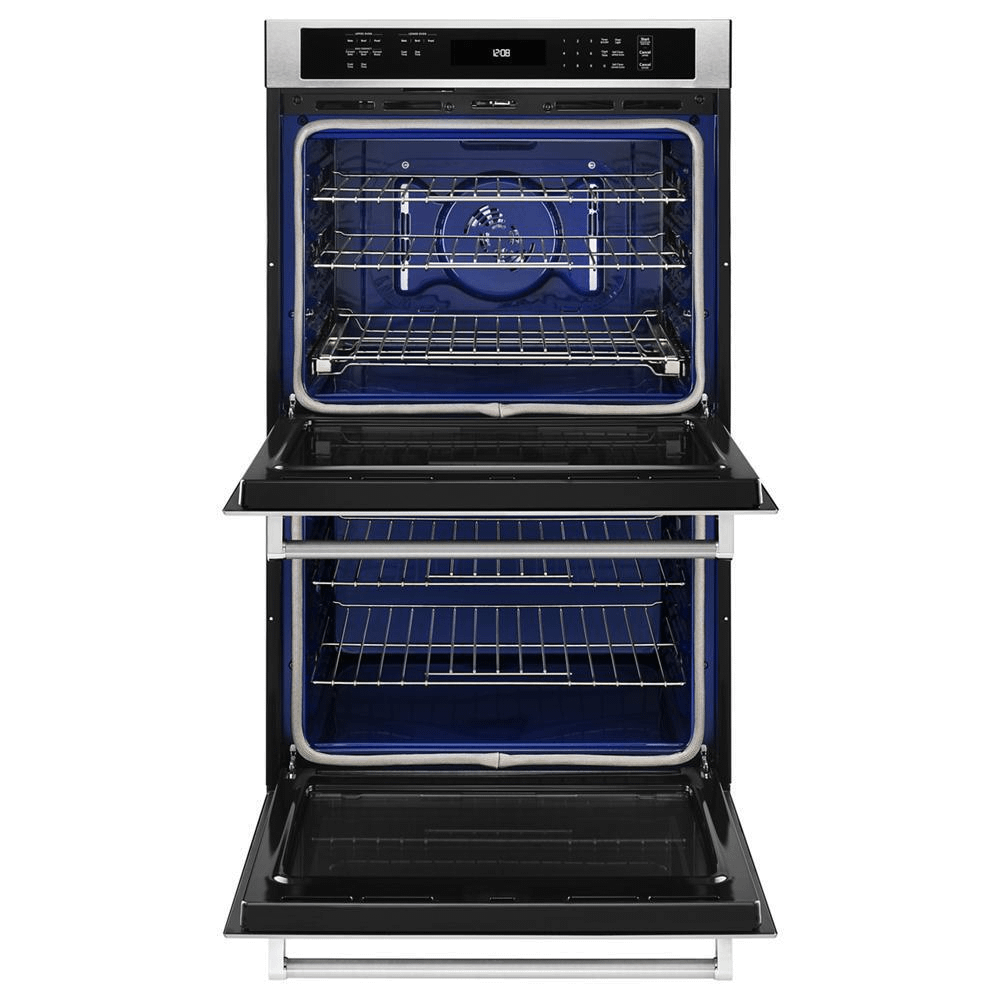

This 30" Double Upper Wall Oven with Even-Heat™ True Convection provides consistent heating and even cooking. A unique bow-tie shaped design and convection fan helps ensure there are no burnt edges or undercooked centers. The Temperature Probe delivers accurate measurement of internal temperatures of meats, poultry, and casseroles without opening the oven. Bold design details are the perfect balance of elegance and functionality.
- 5.0 Cu. Ft. Capacity (each oven)
- Provides an extra-large cooking capacity that s unsurpassed among 30" wall ovens and is perfect for large turkeys and roasts. It can even make multiple dishes at once.
- EasyConvect(TM) Conversion System
- Takes the guesswork out of convection cooking by ensuring exceptional results when experimenting with new recipes or familiar favorites.
- Even-Heat(TM) Preheat
- Helps remove cold spots to help ensure even baking because the entire oven, including the walls and racks, are heated to the correct temperature.
- Even-Heat(TM) True Convection Oven (upper oven)
- features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
- FIT System Guarantee
- Allows for customization of wall oven installation to match the height of existing cabinets through flexible design elements.

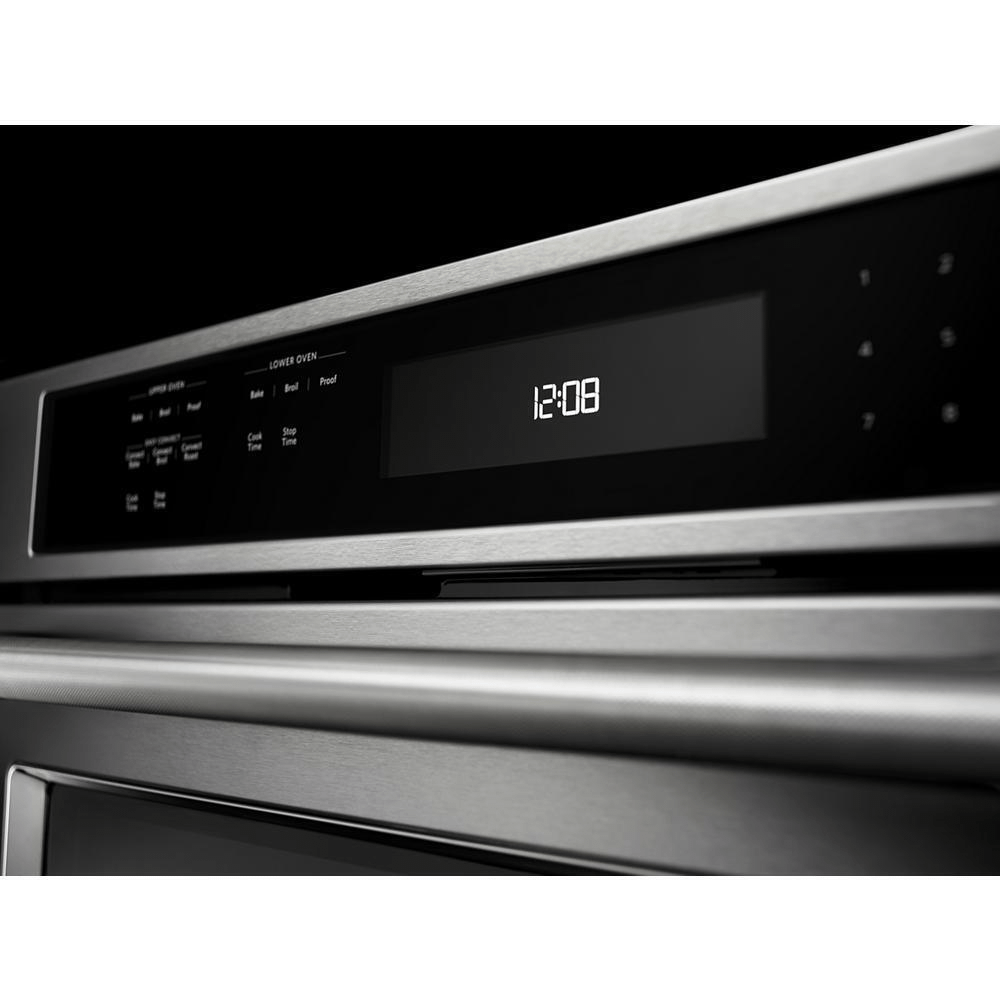

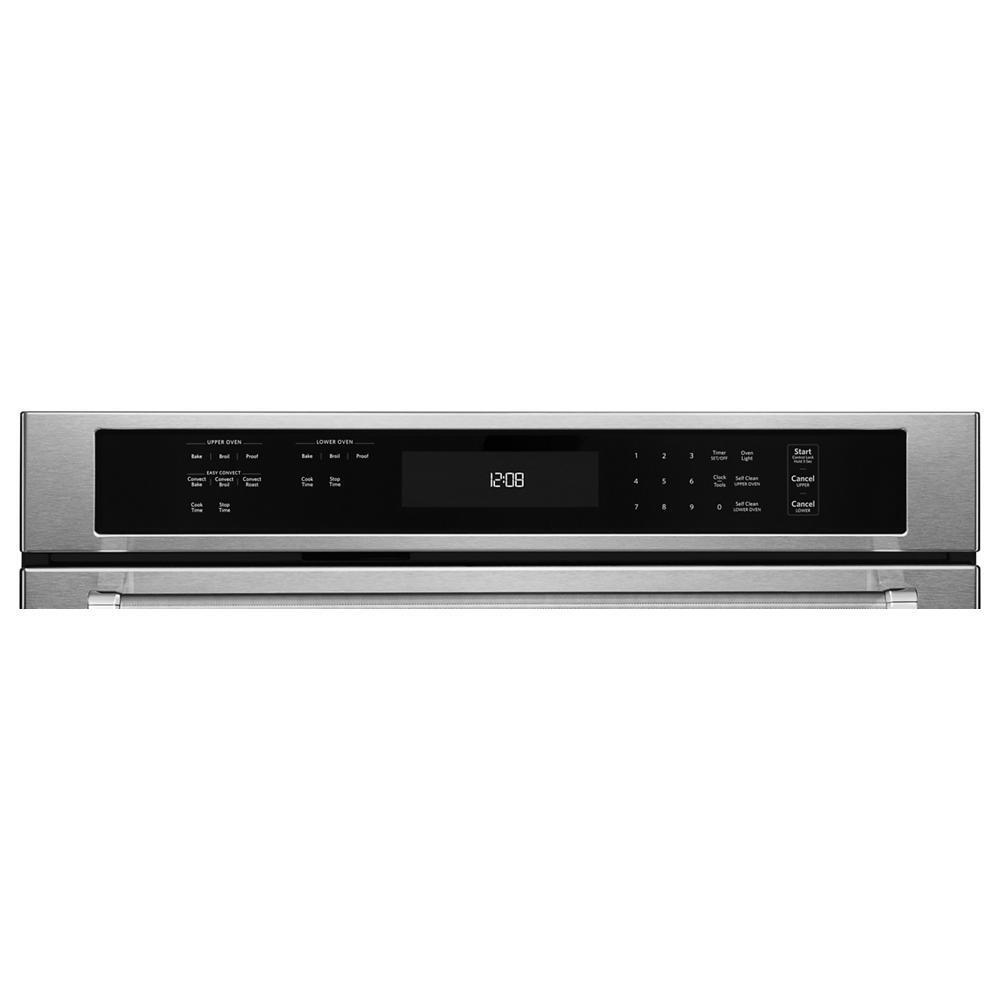

- Glass-Touch Display with Control Lock Function
- Gives an intuitive glass touch screen experience that s easy to wipe clean.
- SatinGlide(TM) Roll-Out Extension Rack (upper oven)
- Allows easy loading and features an easy-grip handle, giving you the confidence when cooking with large or heavy dishes.
- Self-Cleaning Cycle
- uses high temperatures to loosen baked-on food without the need for harsh chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
- Temperature Probe (upper oven)
- Allows accurate measurement of internal temperature of meats, poultry, and casseroles without having to open the oven door.
Certifications | |
Cul | Yes |
Energy Rating | 349 |
Energy Rating (kwh/year) | 349 |
Prop65 | Standard |
Ul | Yes |
Controls | |
Control Type | Touch Screen |
Display Color | White |
Electronic Display Type | Digital |
Details | |
Delay Clean | Yes |
Flush Installation Approved | Yes |
Fuel Type | Electric |
Light Control | Oven Light Touch Pad |
Lp Convertible | No |
Oven Automatic Shut-off | Yes |
Oven Configuration | Double Oven |
Oven Selections | Clock; Control Lock; Delay Start; Proofing; Sabbath Mode; Star K; Temperature Conversion; Temperature Probe; Time Bake; Timer |
Oven Type | Double |
Temperature Conversion | Yes |

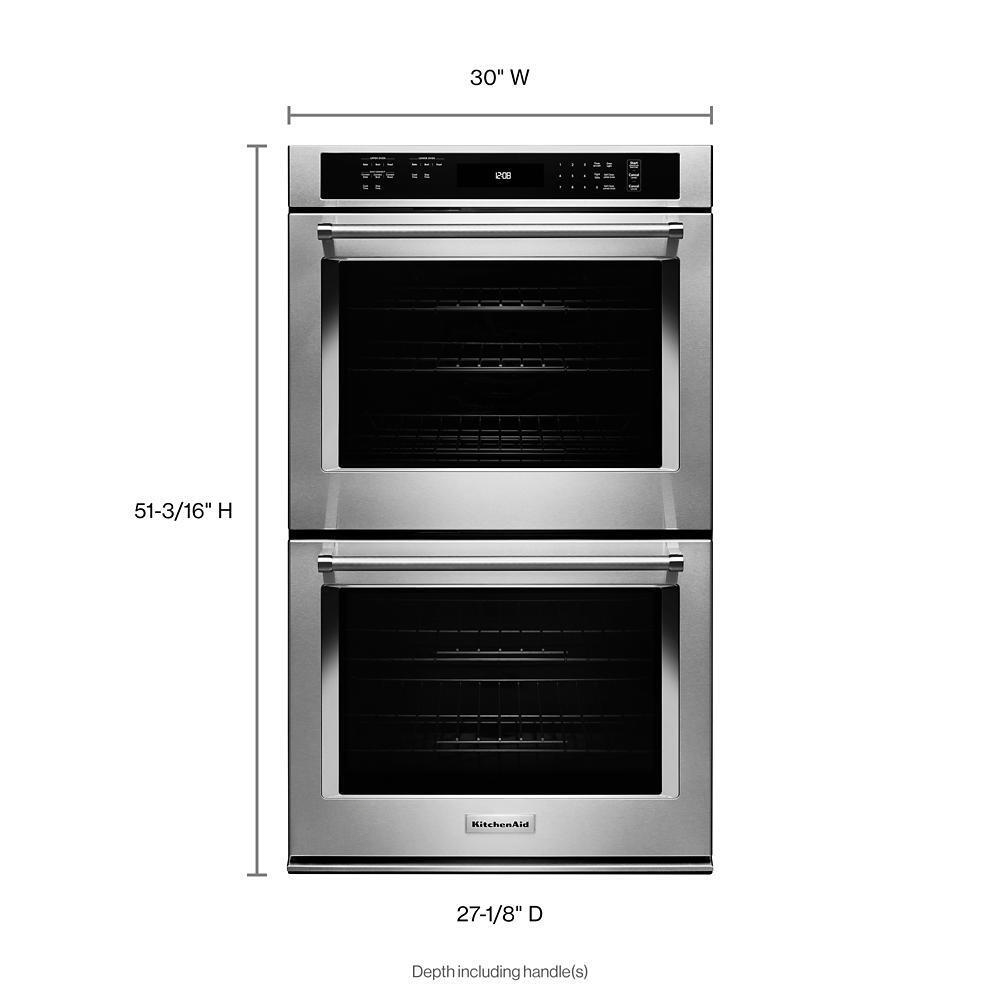

Dimensions | |
Product Height | 51.25 |
Carton Height | 53.5 |
Gross Weight | 291 |
Upper Oven Capacity | 5 |
Carton Width | 34.8 |
Lower Oven Interior Height | 18 |
Upper Oven Interior Width | 25 |
Product Depth | 26.875 |
Depth With Door Open 90 Degree | 46.75 |
Lower Oven Interior Width | 25 |
Cutout Depth | 24 |
Cutout Height | 50.25 |
Lower Oven Capacity | 5 |
Upper Oven Interior Depth | 19 |
Carton Depth | 30.8 |
Cutout Width | 28.5 |
Upper Oven Interior Height | 18 |
Net Weight | 0 |
Product Width | 30.0 |
Lower Oven Interior Depth | 19 |
Exterior Details | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Oven Window Size | Extra Large |
Microwave Details | |
Language Conversion | English/French |
Oven Details | |
Bake Element Power | 2,800 W Both |
Broiler Element Power | 4,000 W Both |
Broiler Location | Top of Oven |
Convection Element Power | 3,200 |
Convection Element Type | True |
Convection Functions | Bake Broil Roast Upper |
Door Broil Position | Closed |
Door Lock | Yes |
Door Removable | Yes |
Hidden Bake Element | Yes |
Installable Under Cooktop | No |
Interior Coating | Porcelain |
Interior Color | Blue |
Light Type | Halogen |
Lower Oven Number of Oven Lights | 2 |
Number of Bake Elements | 1 |
Number of Broil Elements | 1 |
Number of Lower Oven Racks | 2 |
Number of Lower Rack Guides | 6 |
Number of Upper Oven Racks | 3 |
Number of Upper Rack Guides | 6 |
Oven Cleaning Type | Adjustable Self Cleaning |
Oven Cooking System | Convection Upper/Thermal Lower |
Self-cleaning Oven Racks | No |
Upper Oven Number of Oven Lights | 2 |
