Overview & Specifications
Overview & Specifications

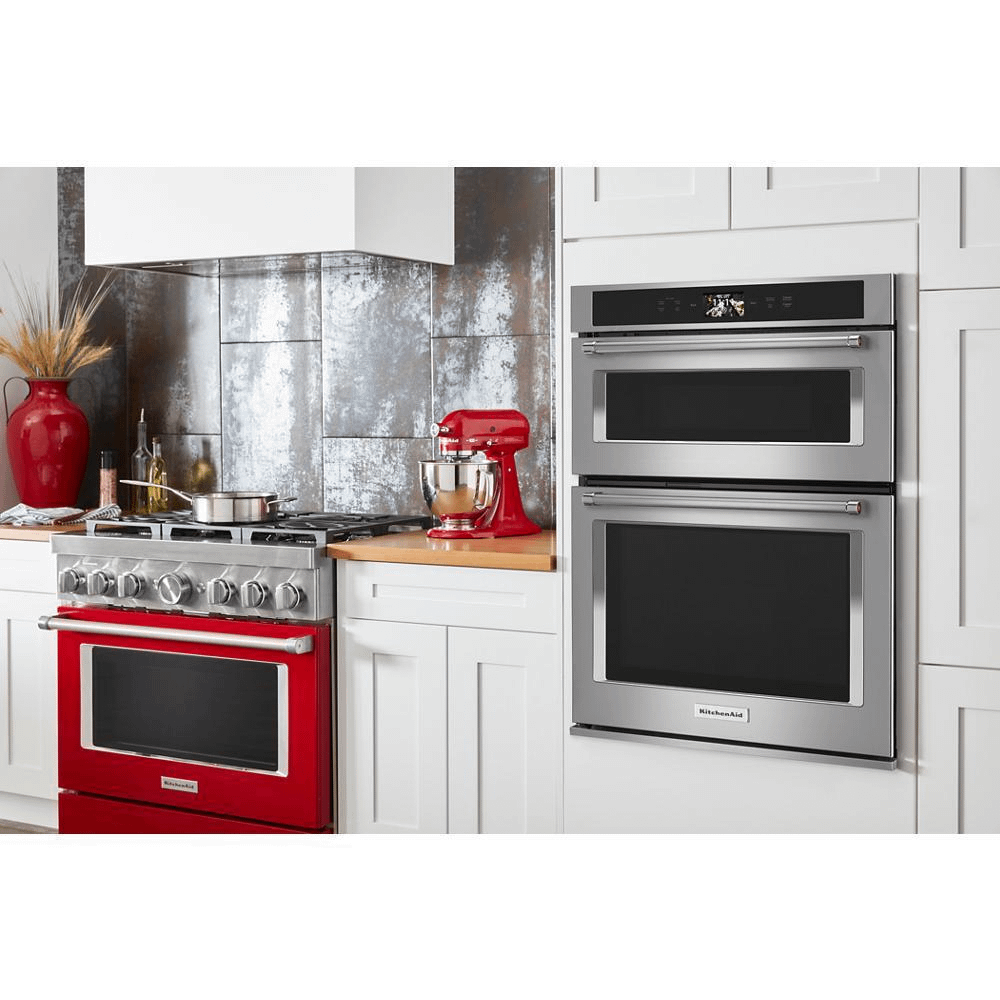

Open up new culinary possibilities. KitchenAid introduces the first combination wall oven that comes with interchangeable attachments in the tradition of the iconic KitchenAid® Stand Mixer to enable grilling, stone cooking and steaming. As cooks expect today from a premium wall oven, it also supports a full complement of smart capabilities as well as baking, broiling and Even-Heat™ True Convection.
- +Baking Stone Attachment
- Connect, register or call to get your baking stone by mail at no additional cost. It stone-bakes a large 14"" pizza, seared kabobs or crab cakes right in your oven. The attachment fits interchangeably onto the base pan and heating element and connects to a powered hub in your oven to preheat in half the time of a non-integrated stone and alert you when preheating is complete. Easy-clean, dishwasher safe.

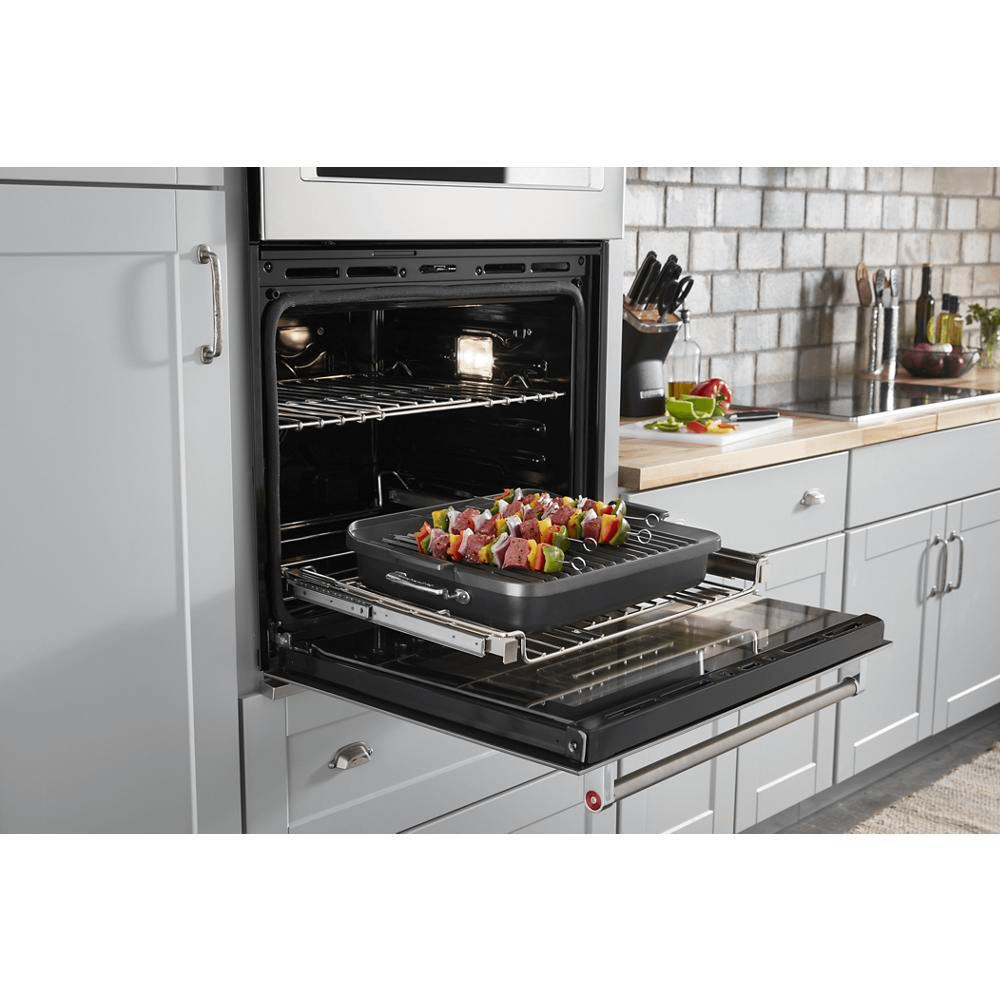

- +Grill Attachment
- Allows true grilling year-round. It minimizes smoke and eliminates the flares common on outdoor grills, and its advanced design heats evenly from edge to edge. The grill fits interchangeably onto the base pan and heating element and connects to a powered hub in the oven, allowing you to control cooking manually or select modes that helpfully suggest when to turn chops or remove scallops. Easy-clean, dishwasher safe. The base pan, heating element and grill are shipped with the oven.

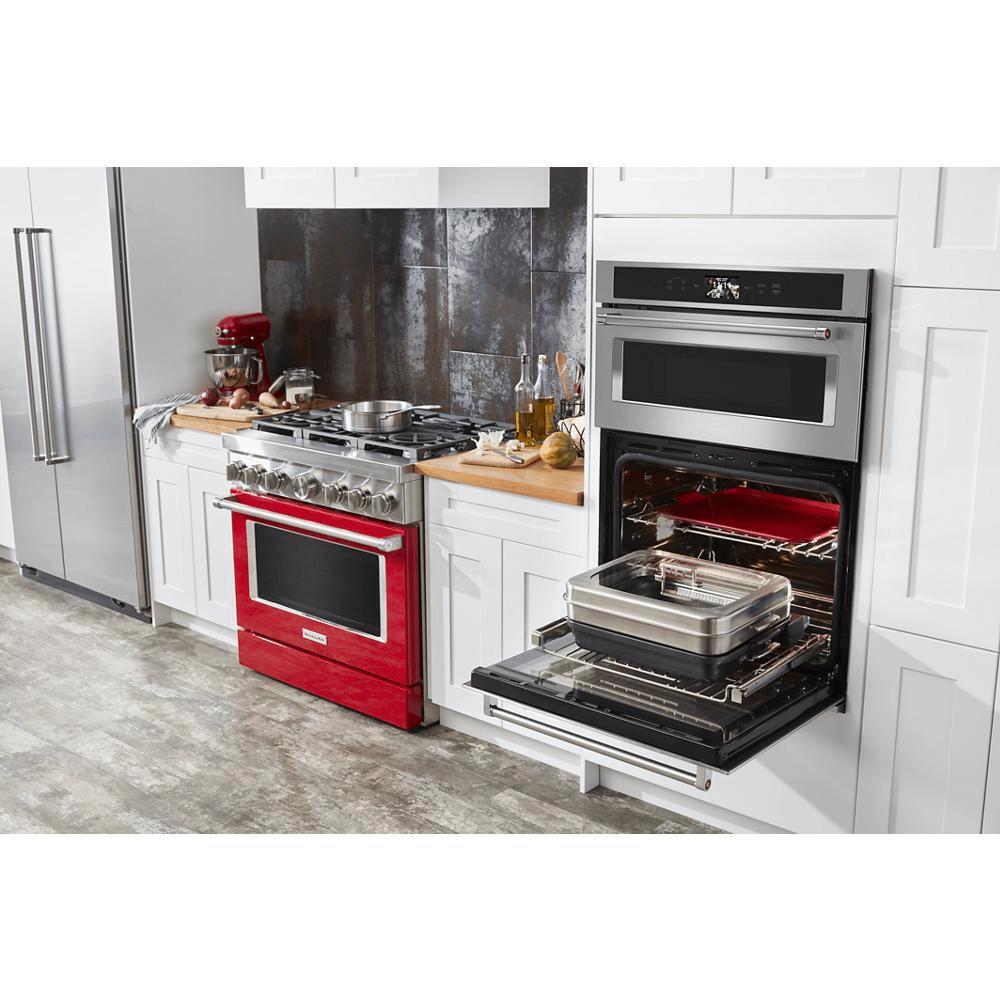

- +Steamer Attachment
- Connect, register or call to get your steamer by mail at no additional cost. It fits interchangeably onto the base pan and heating element and connects to a powered hub in your oven, enabling control through the oven's display so you can precisely steam-cook vegetables, entrees or even a complete dinner for four of salmon, potatoes and asparagus. The attachment can also be used with the Steam Assist mode to create a humid cooking environment ideal for baked goods, breads and roasts. Easy-clean, dishwasher safe.
- 1.4 Cu. Ft. Microwave Oven Capacity
- Provides spacious cooking capacity while complementing your lower convection oven.

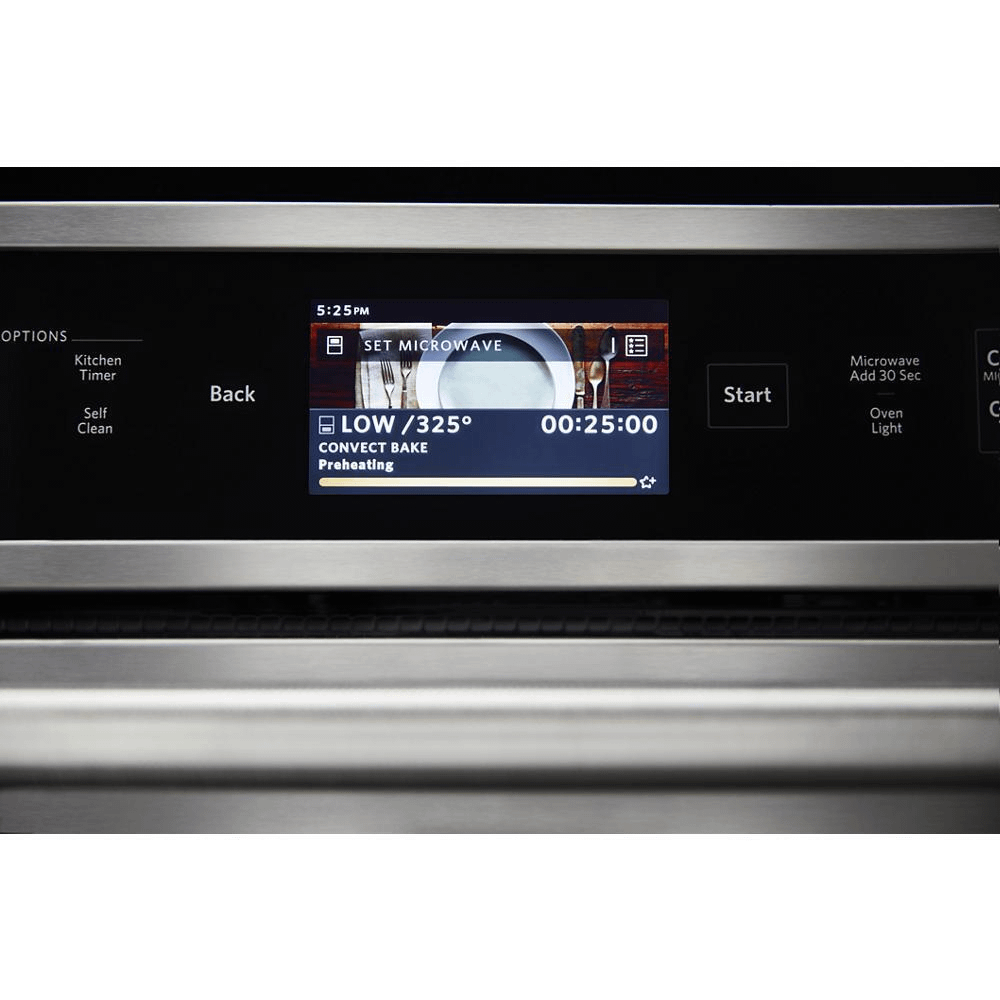

- 4.5" Full Color Glass-Touch LCD Display
- Lets you easily see and select among your oven system's many capabilities. High-res 4.5" color display shows video, gives you control of all cooking modes, takes commands from your mobile device, and can add even more capability via Wi-Fi in the future.
- 5.0 Cu. Ft. Oven Capacity
- Provides an extra-large cooking capacity in both ovens that s perfect for large turkeys and roasts. It can even fit multiple dishes at once.
- Broil Element
- Combines the high power and even coverage needed to give you results similar to outdoor grilling.
- Cook's Assistant Option
- Helps you explore the abilities of the oven's attachments, convection baking and sensor cooking by programming them automatically. Simply select "Auto" on the display, then select the food and desired level of cooking. The assistant suggests an optimum time and temperature for best results, then lets you use that recommendation or adjust it.
- CrispWave(TM) SpeedCook Technology and Crisper Pan (microwave oven)
- Enable grilling, frying and convection cooking in the microwave. The specially designed crisper pan lets you brown, crisp, and even pan-fry bacon and eggs, expanding the boundaries of what you thought possible from microwave cooking.
- Even-Heat(TM) Preheat (lower oven)
- Helps prevent cold spots for even baking by ensuring that the lower oven cavity - including walls and racks - is heated to the correct temperature right from the start, so all the madeleines in every batch turn out just as you desire.
- Even-Heat(TM) True Convection Oven
- Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures crisp, flaky baked goods, juicy, well-browned roasts and carmerlized vegetables.

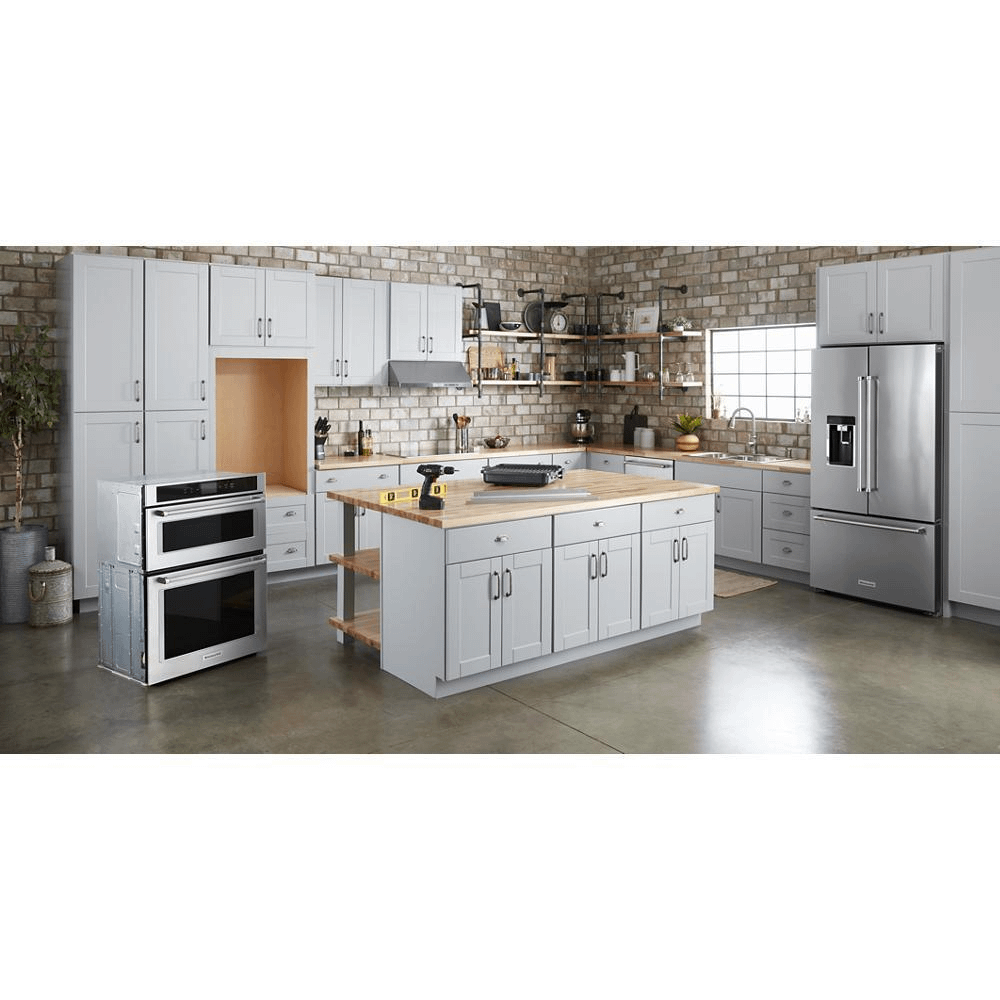

- FIT System
- Allows for customization of wall oven installation to match the height of existing cabinets through flexible design elements.
- Microwave Convection Cooking (microwave oven)
- Includes a 1600-watt convection element to provide a secondary option for convection cooking, ideal for baking macaroons or tortes while you use the lower oven to prepare the entr(eback)e.
- Recipe Guide mode for Powered Attachments
- Helps you get started by giving you a step-by-step tutorial to prepare introductory recipes using each attachment. This mode makes it easy to unlock the system's full potential and expand your culinary horizons.

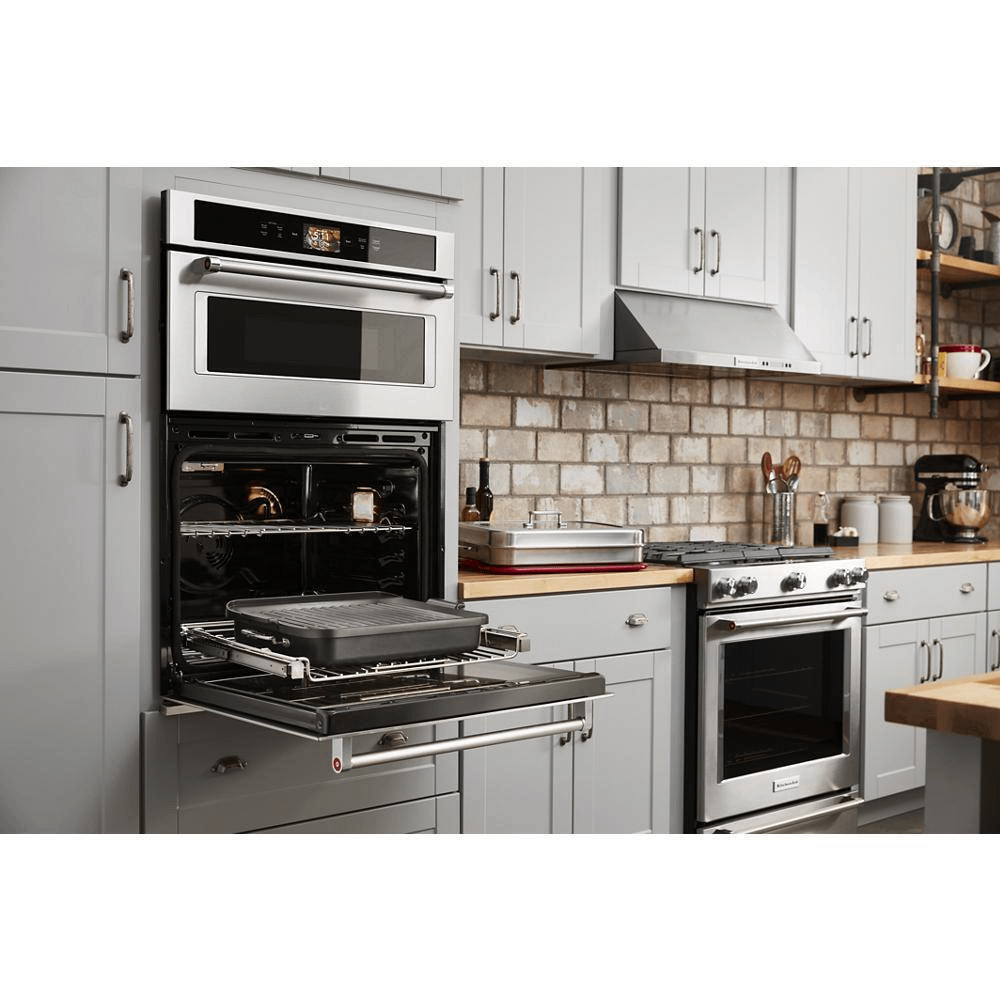

- SatinGlide(TM) Roll-Out Extension Rack for Smart Oven+ Attachments (oven)
- Makes it easier to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading. Lower-oven rack is designed to hold the attachment base pan securely in place during use, yet allows easy pan insertion and removal.
- Self Cleaning Cycle
- Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe-down at the end of the cycle so you can get right back to cooking.
- Smart Oven+ Mobile App Connectivity
- Gives you control of your oven in or out of the kitchen. Use our mobile app to remotely monitor and control the oven, suggest when it's time to tend the food, or enter your own cooking instructions and save them for next time. You can control your oven with simple voice commands through your Google Assistant or an Alexa-enabled device. And download the Yummly(R) app and search ""KitchenAid"" to find 90 attachment-ready recipes that will open up even more possibilities for you to create .
- Smart Oven+ Powered Attachments
- Offer you the first-ever collection of oven-powered grill, baking stone and steamer attachments. Each fits interchangeably into a provided heating element and base pan that connect onto the back of the oven cavity. You control the cooking process through the oven's controls or a mobile app to take on classic recipes and new culinary challenges. The base pan, heating element and grill are shipped with the oven. Connect, call or register to get baking stone and steamer by mail at no additional cost.
- Stainless Steel Cavity (microwave oven)
- Extends the beauty of the oven s exterior to the inside. The easy-to-clean stainless steel interior enhances browning, baking and grilling for exceptional cooking results.
- Temperature Probe
- Accurately measures the internal temperature of meats or casseroles and communicates with the oven, so you can control whether your roast beef tenderloin comes out rare, medium rare, or medium without ever having to open the oven door.
Certifications | |
Ada Compliant | No |
Cul | Yes |
Energy Rating | 380 |
Energy Rating (kwh/year) | 380 |
Prop65 | Standard |
Star K Certified | Kosher Consumer Friendly |
Ul | Yes |
Controls | |
Control Type | Glass Touch Digital Display |
Display Color | Full Color |
Electronic Display Type | LCD |
Microwave Selections | Add 30 Seconds; Beverage; Control Lock; Convect; Cook Power; Cook Time; Cook/Start; Crisp; Defrost; Dinner Plate; End of Cycle Signal; Favorites; Fresh Vegetable; Frozen Vegetable; Off/Cancel; Pizza; Popcorn; Potato; Reheat; Soften/Melt; Sound On/Off; Soup |
Number of Keypads | 1 |
Details | |
Flush Installation Approved | Yes |
Fuel Type | Electric |
Grill | Yes |
Grill Power | 1,600 |
Oven Automatic Shut-off | Yes |
Oven Configuration | Microwave Combination |
Oven Selections | Audible Signal; Broil; Cancel/Off; Clock; Control Lock; Convect Modes; Cook Time Indicator; Cook and Hold; Delay Start; Easy Convect Baked Goods; Easy Convect Meats; Easy Convect Pizza; Favorites; Keep Warm Setting; Language Conversion; Proofing; Rapid Pre |
Turntable | Yes |

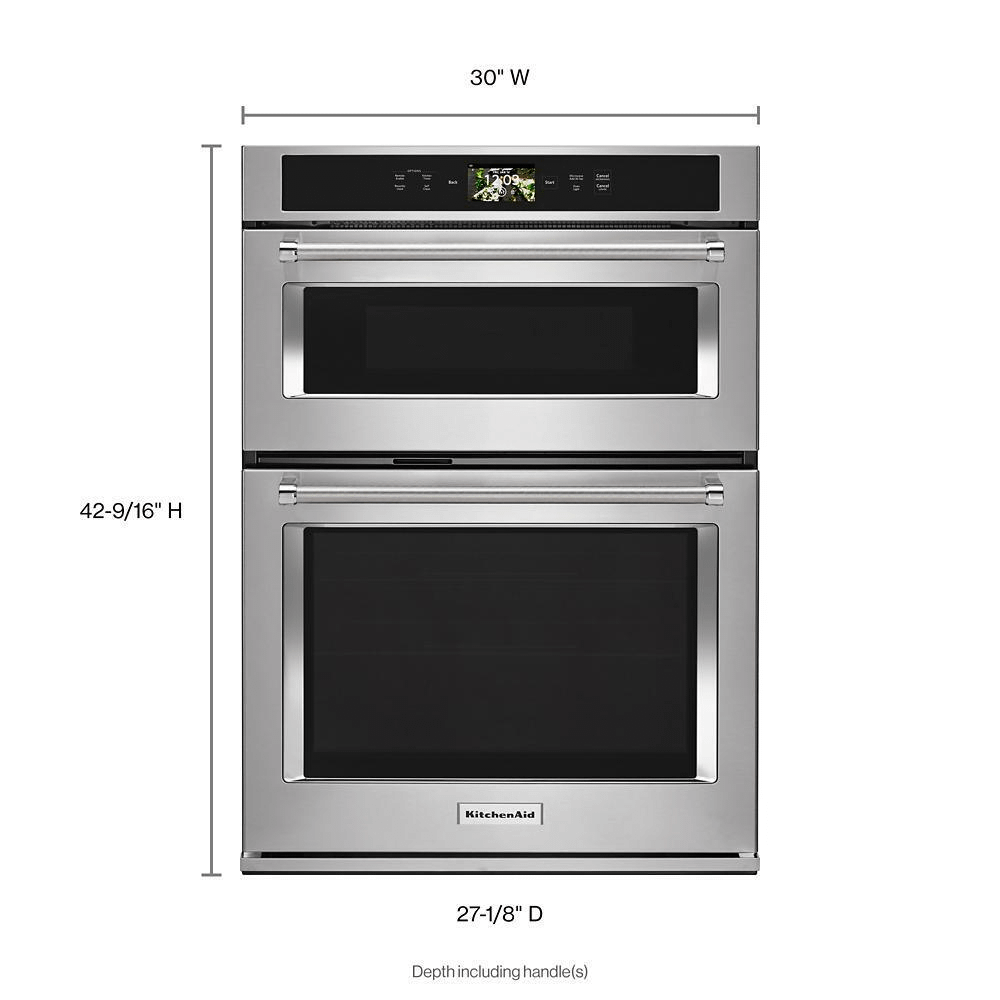

Dimensions | |
Product Height | 42.5 |
Carton Height | 45.54 |
Gross Weight | 280 |
Oven Interior Height | 18 |
Carton Width | 35.53 |
Product Depth | 27.125 |
Oven Interior Depth | 19 |
Depth With Door Open 90 Degree | 46.75 |
Cutout Depth | 24 |
Cutout Height | 41.375 |
Depth Closed Excluding Handles | 24.5 |
Depth Closed Including Handles | 27.125 |
Carton Depth | 31.42 |
Cutout Width | 28.5 |
Oven Capacity | 5 |
Oven Interior Width | 25 |
Net Weight | 259.7 |
Product Width | 30.0 |
Electrical | |
Power Cord Included | Yes |
Exterior Details | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Stainless Steel |
Oven Window Size | Extra Large |
General | |
Microwave Door Swing | Left |
Microwave Interior Depth | 16.5 |
Microwave Interior Height | 8.875 |
Microwave Interior Light | Halogen |
Microwave Interior Width | 17.625 |
Microwave Details | |
Door Release | Handle |
Language Conversion | English/French |
Microwave Capacity | 1.4 |
Number of Microwave Racks | 1 |
Turntable Diameter Size | 14.125 |
Oven Details | |
Bake Element Power | 2,800 W |
Broiler Element Power | 4,000 W |
Broiler Location | Top of Oven |
Convection | Yes |
Convection Element Power | 3,200 |
Convection Element Type | True |
Convection Functions | Bake; Broil; Convection Conversion; Roast |
Convection Power | 1,600 |
Cooking Power | 900 |
Door Broil Position | Closed |
Door Lock | Yes |
Door Removable | Yes |
Hidden Bake Element | Yes |
Interior Color | Black |
Number of Oven Lights | 2 |
Number of Oven Racks | 2 |
Number of Rack Guides | 6 |
Oven Cleaning Type | Adjustable Self Cleaning |
Oven Cooking System | Convection |
Oven Light Type | Halogen |
Self-cleaning Oven Racks | No |
Smart Compatibility | |
Connectivity | Amazon Alexa; Android; Google Assistant; iOS |
Smart Appliance | Yes |
Works With | App; Remote Access; Voice Controlled; WiFi |
