Overview & Specifications
Overview & Specifications

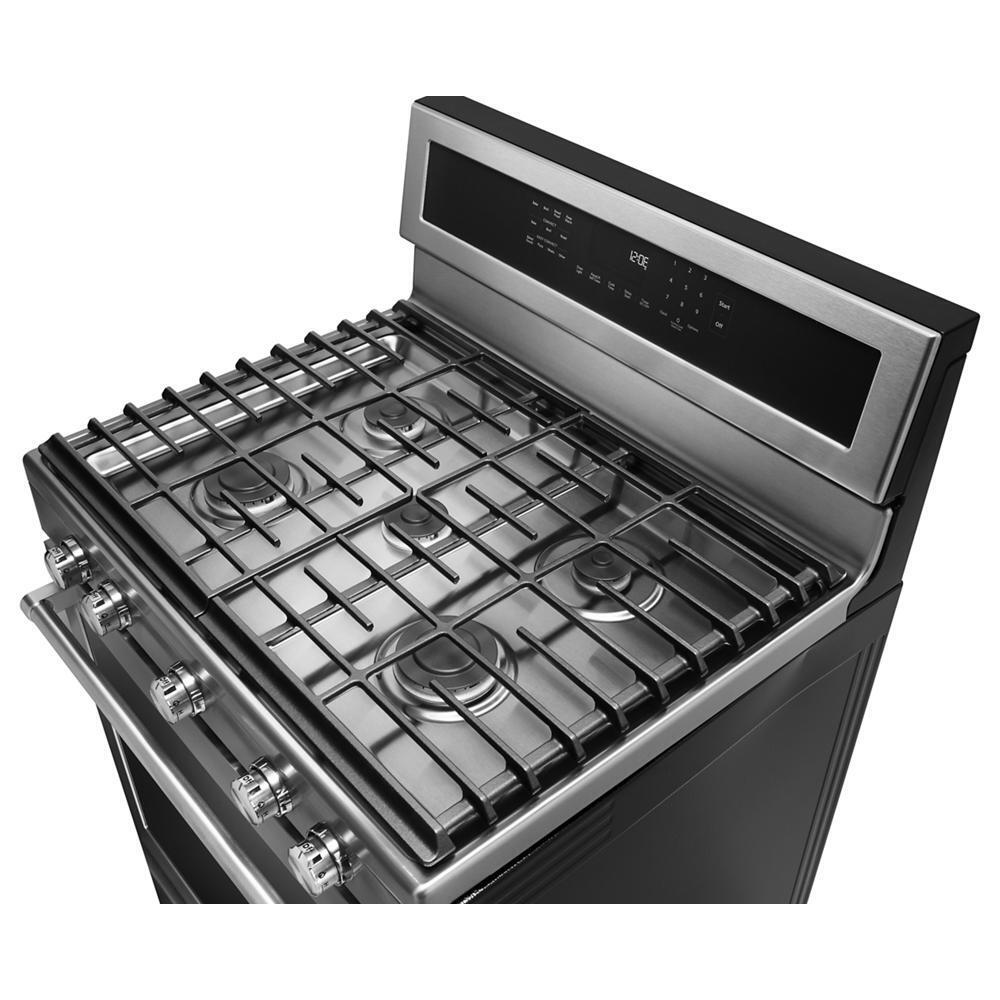

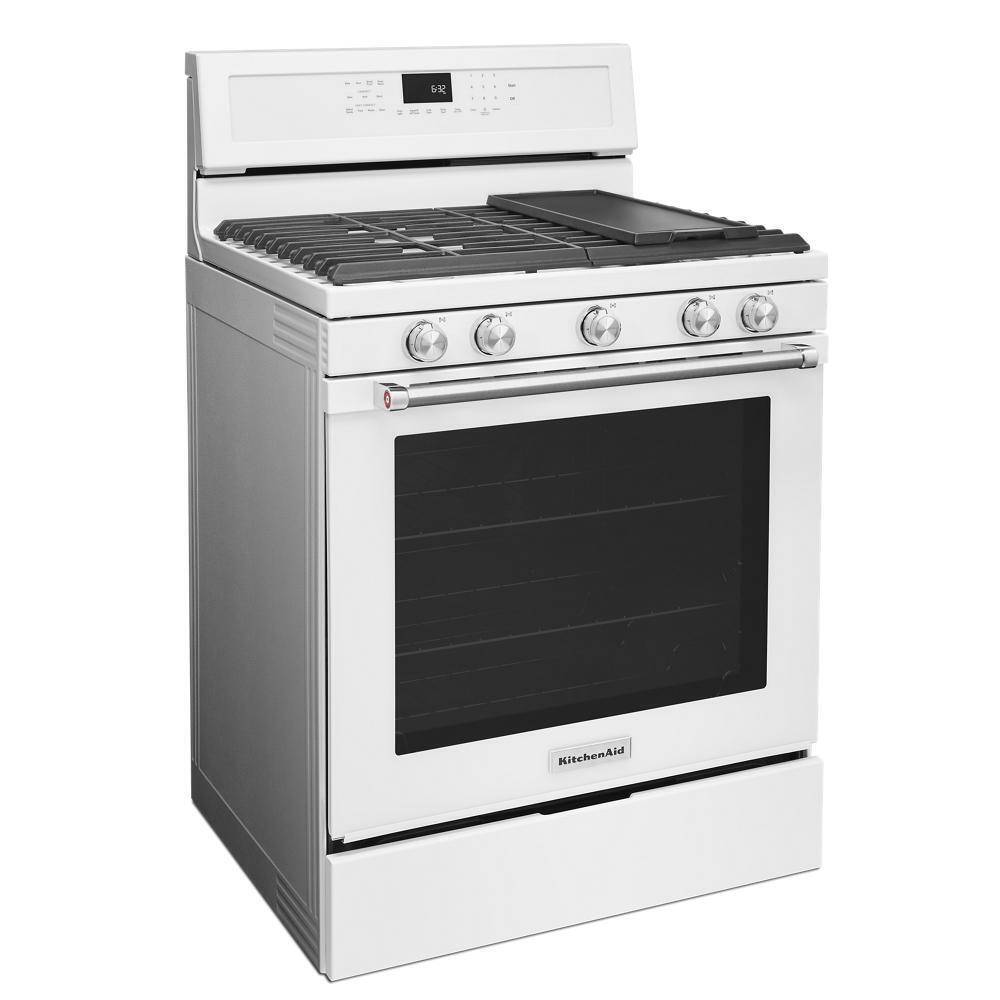

This versatile gas freestanding range produces flawless cooking results with Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature. The cooktop has 5 burners ranging from 5,000 to 18,000 BTU, letting you go from a rolling boil to a delicate simmer.
- 5 burners (5k, 8k, 9.5k, 15k and 18k) and removable griddle
- provides the perfect range of cooking power from 18,000 to 5,000 BTU, so you can go from a rolling boil to a delicate simmer. The removable griddle is ideal for making a range of dishes from crepes to quesadillas.

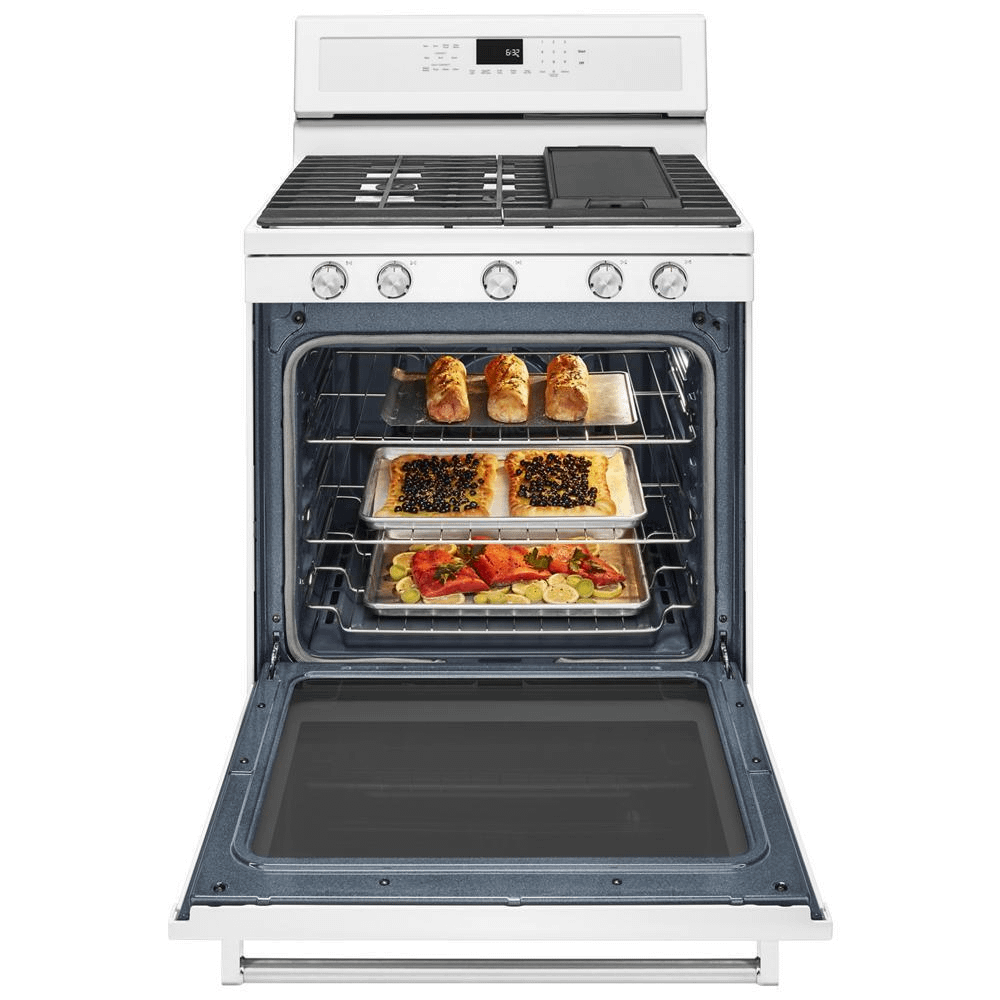

- 5.8 Cu. Ft. Oven Capacity
- provides a large cooking capacity that s perfect for multiple dishes at once.
- Aqualift(R)
- Cleans your oven in less than an hour without odors and at a temperature below 200(degree)F. This innovative system combines low heat with water to release baked-on spills.
- EasyConvect(TM) Conversion System
- Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.

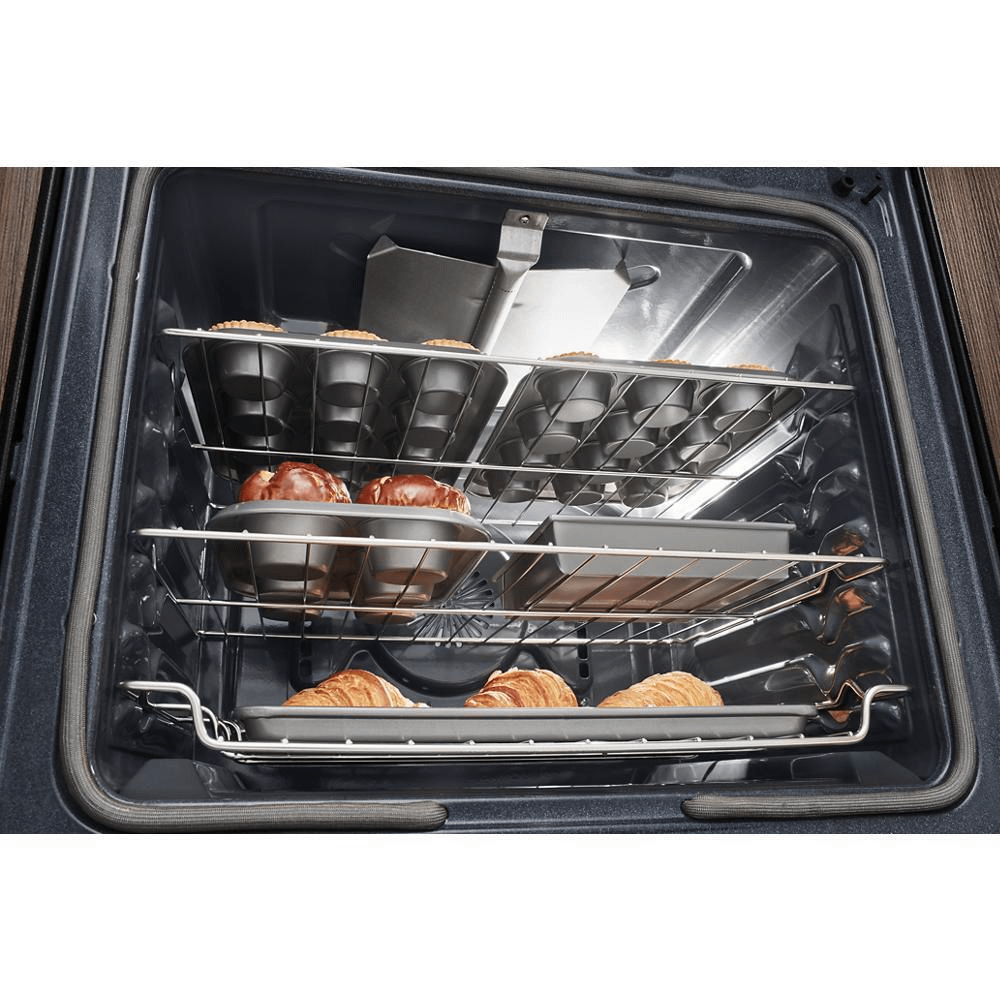

- Even-Heat(TM) True Convection
- features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.

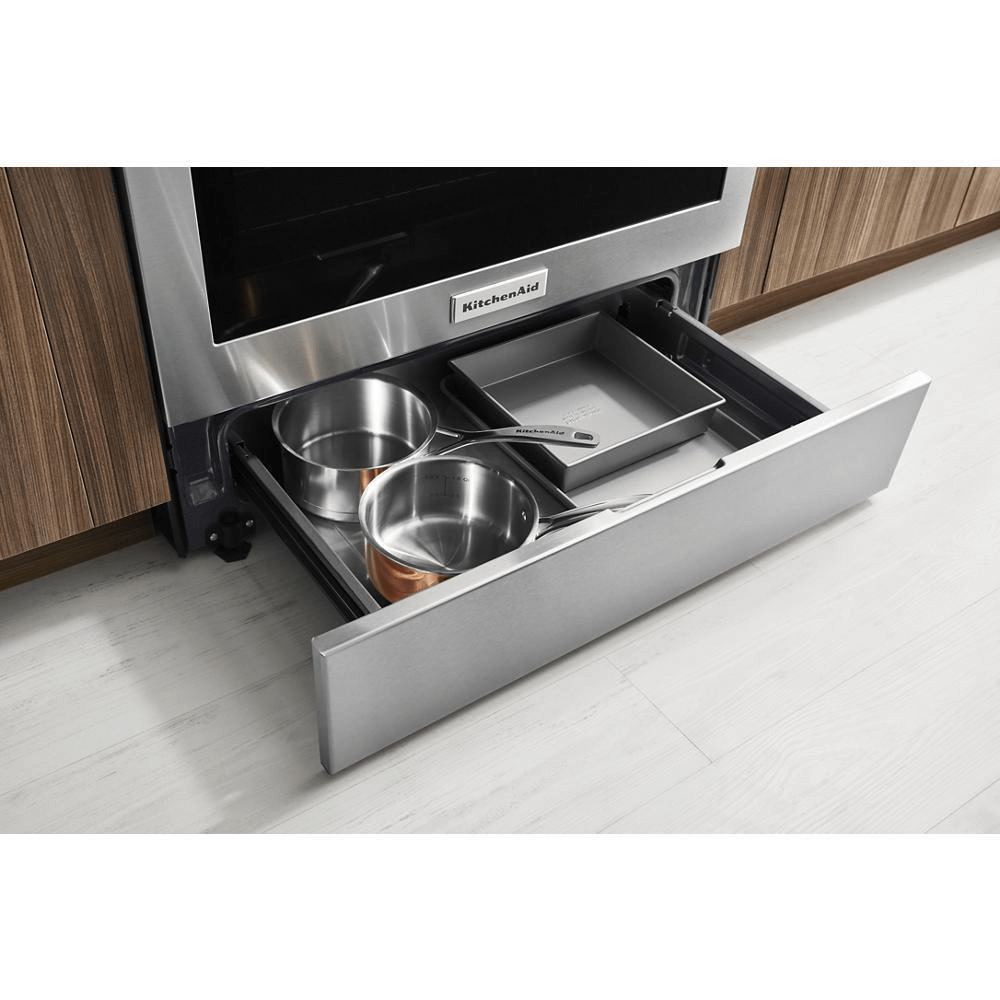

- Storage Drawer
- adds additional storage space that s perfect for pots, pans and baking sheets.
Certifications | |
Prop65 | Standard |
Ul | Yes |

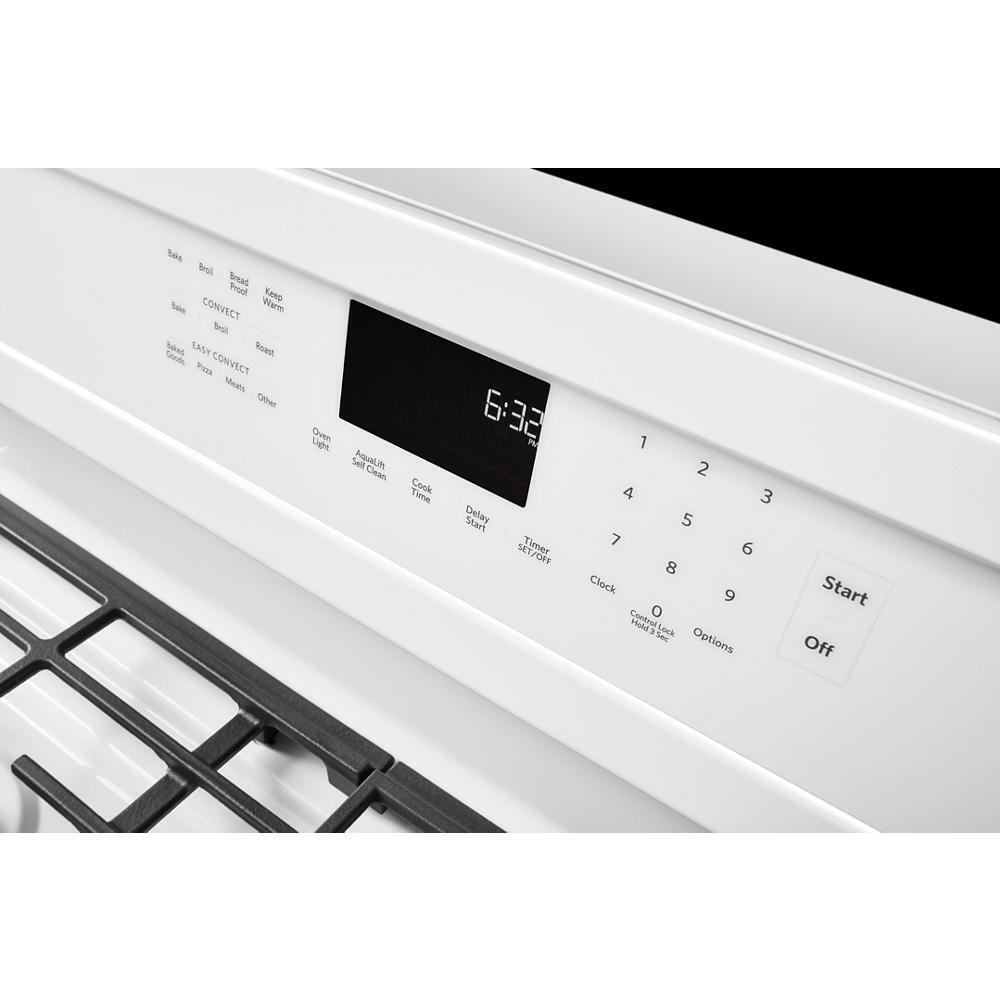

Controls | |
Display Color | Red; White |
Electronic Display Type | Digital |
Cooktop Details | |
Auto Re-ignition | No |
Cooktop Control Knob Type | Metal |
Cooktop Control Location | Front |
Cooktop Control Type | Knobs |
Cooktop Surface Color | White |
Griddle Included | Included |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Ignition Type | Electronic |
Details | |
Automatic Convection Conversion Temperature Adjust | Yes |
Fuel Type | Gas |
Oven Configuration | Single Oven |
Oven Selections | Cook Time Indicator; Delay Start; Easy Convect Baked Goods; Easy Convect Meats; Easy Convect Pizza; Keep Warm Setting; Proofing; Sabbath Mode; Timer; Warm Zone |
Power On Indicator Light | Yes |
Power Outage Compatible | No |
Range Configuration | Freestanding |
Range Drawer Type | Storage Drawer |
Range Type | Freestanding |

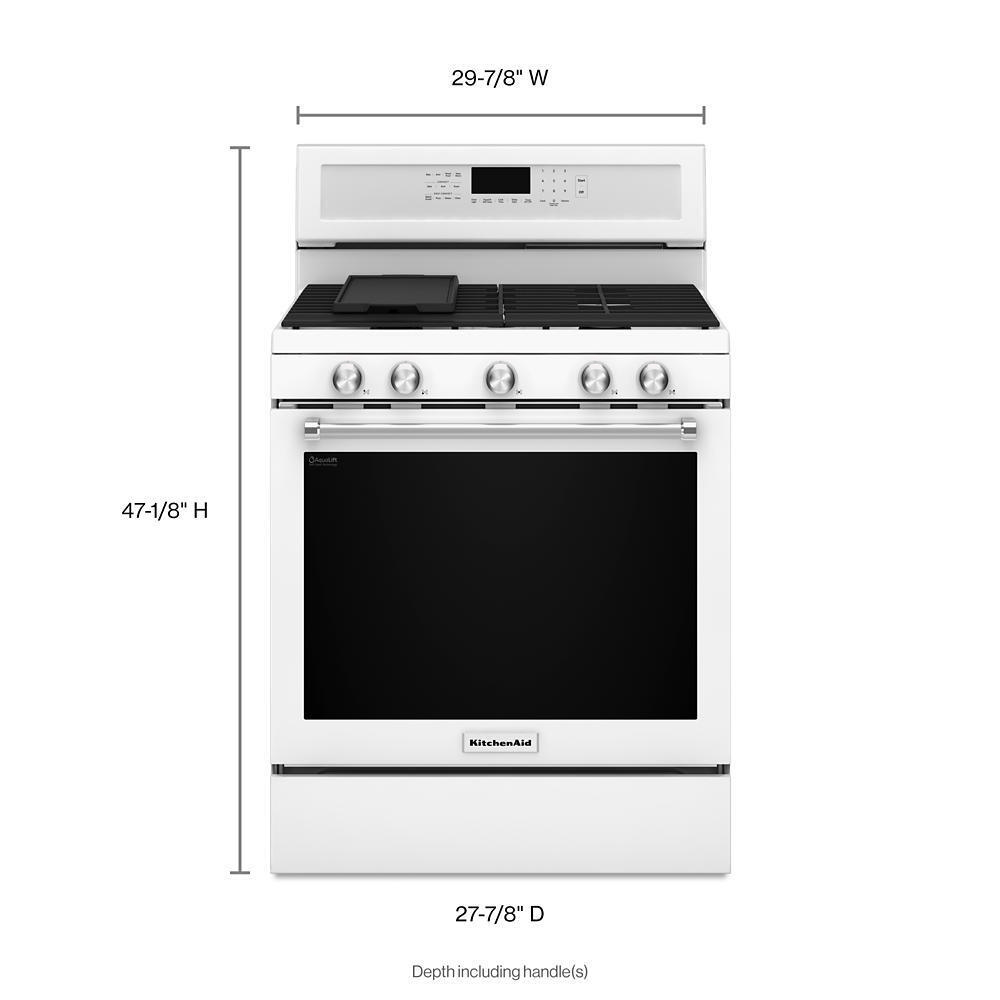

Dimensions | |
Carton Depth | 29 |
Carton Height | 48.75 |
Carton Width | 32 |
Depth Closed Excluding Handles | 25.438 |
Depth Closed Including Handles | 27.875 |
Depth With Door Open 90 Degree | 47.875 |
Gross Weight | 200 |
Net Weight | 0 |
Oven Interior Depth | 20.625 |
Oven Interior Height | 20 |
Oven Interior Width | 24.125 |
Electrical | |
Power Cord Included | Yes |
Element/burner Details | |
Center Rear Element-burner Power | 8,000 BTU |
Center Rear Element-burner Type | Sealed Burner |
Cooktop Element Style | Gas Burner |
Left Front Element-burner Power | 18,000 BTU |
Left Front Element-burner Type | Sealed Burner |
Left Rear Element-burner Power | 9,500 BTU |
Left Rear Element-burner Type | Sealed Burner |
Number of Cooking Element-burners | 5 |
Right Front Element-burner Power | 15,000 BTU |
Right Front Element-burner Type | Sealed Burner |
Right Rear Element-burner Power | 5,000 BTU |
Right Rear Element-burner Type | Sealed Burner |
Exterior Details | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Handle Type | Towel Bar |
Knob Color | Stainless Steel |
Knob Type | Metal |
Oven Control Location | Backguard |
Oven Control Type | Electronic Touch |
Oven Window Size | Large |
Grate Details | |

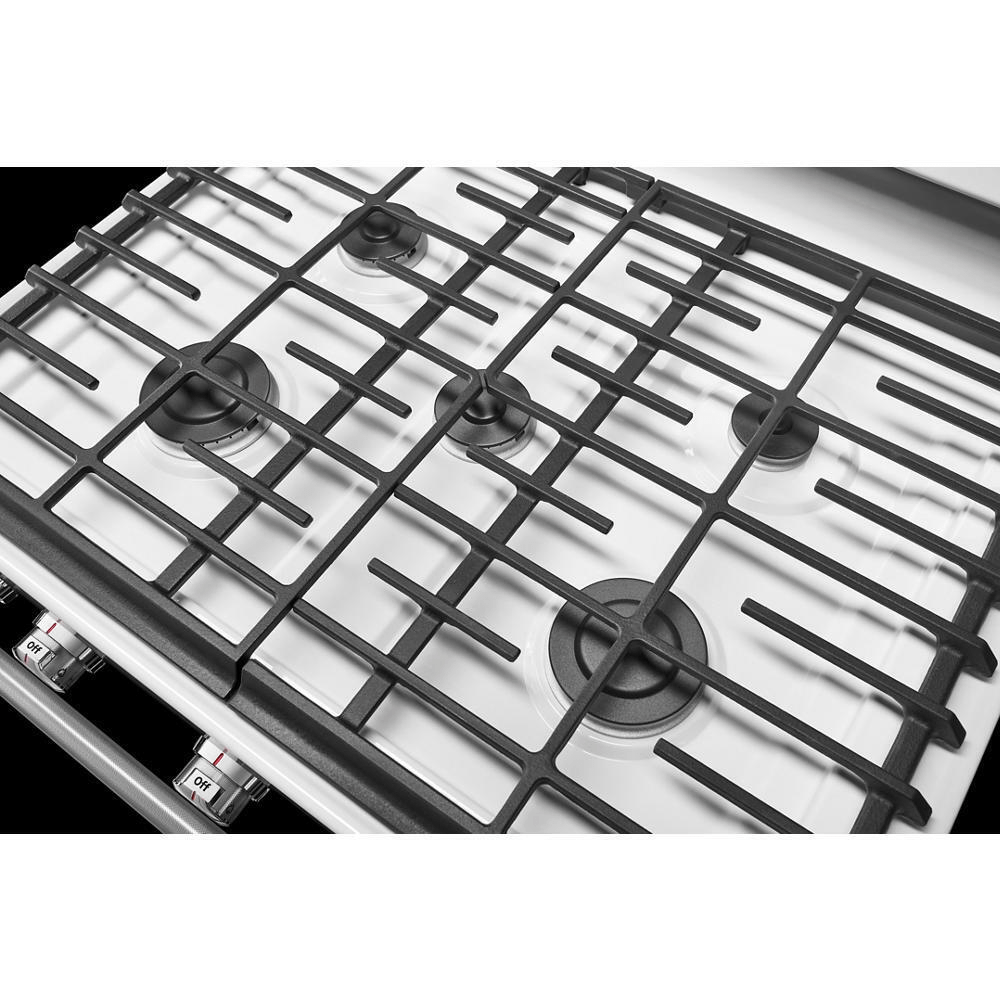

Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish |
Number of Grates | 2 |
Oven Details | |
Bake Element Power | 18,000 BTU |
Broiler Element Power | 11,000 BTU |
Broiler Location | Top of Oven |
Convection Element Power | 900 |
Convection Element Type | Fan |
Convection Functions | Bake; Broil; Roast |
Hidden Bake Element | Yes |
Interior Color | Grey |
Number of Oven Lights | 1 |

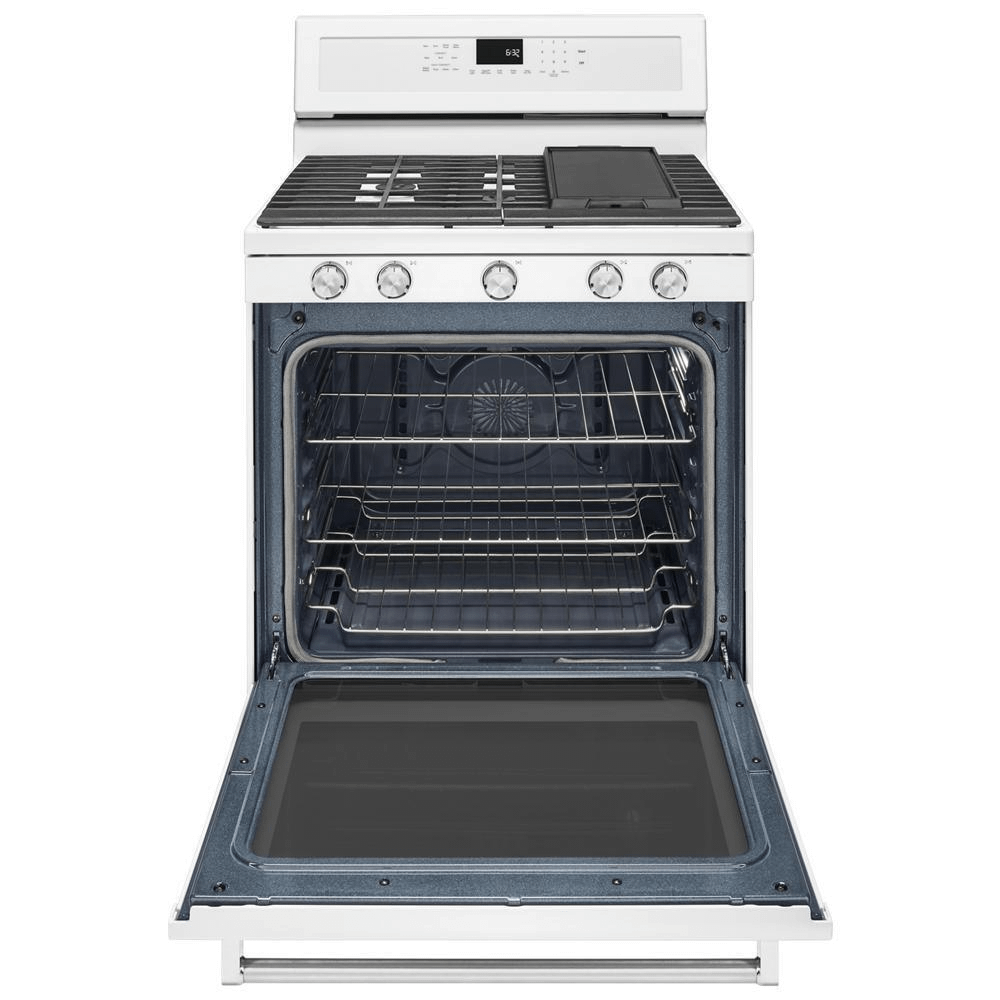

Number of Oven Racks | 3 |
Number of Rack Guides | 7 |
Oven Cleaning Type | AquaLift® Self Clean |
Oven Cooking System | Convection |
Oven Light Type | Incandescent |
Oven Rack Type | 1 Max Capacity, 2 Standard |
